ROUTINE SERVICE
LUBRICATION
2
Trim and Tilt
Check reservoir fluid level every three years or
every 300 operating hours.
• System capacity is approximately 21 fl. oz. (620
ml).
• Tilt the outboard and engage the tilt support.
• Remove filler cap and check fluid level.
• Three Ram System–Add Power Trim/Tilt Fluid
or GM Dexron II, as needed, to bring level to the
bottom of the fill plug threads.
Install the filler cap and tighten to a torque of 45 to
55 in. lbs. (5 to 6 N·m).
• Disengage tilt support.
• Cycle the unit at least five complete cycles to
purge all air from the system. When cycling the
unit, hold the trim switch ON an additional 5 to
10 seconds after the unit reaches the end of its
travel before activating the switch in the oppo-
site direction.
CAUTION
Correct fluid level must be maintained to
ensure operation of the impact protection
built into the unit.

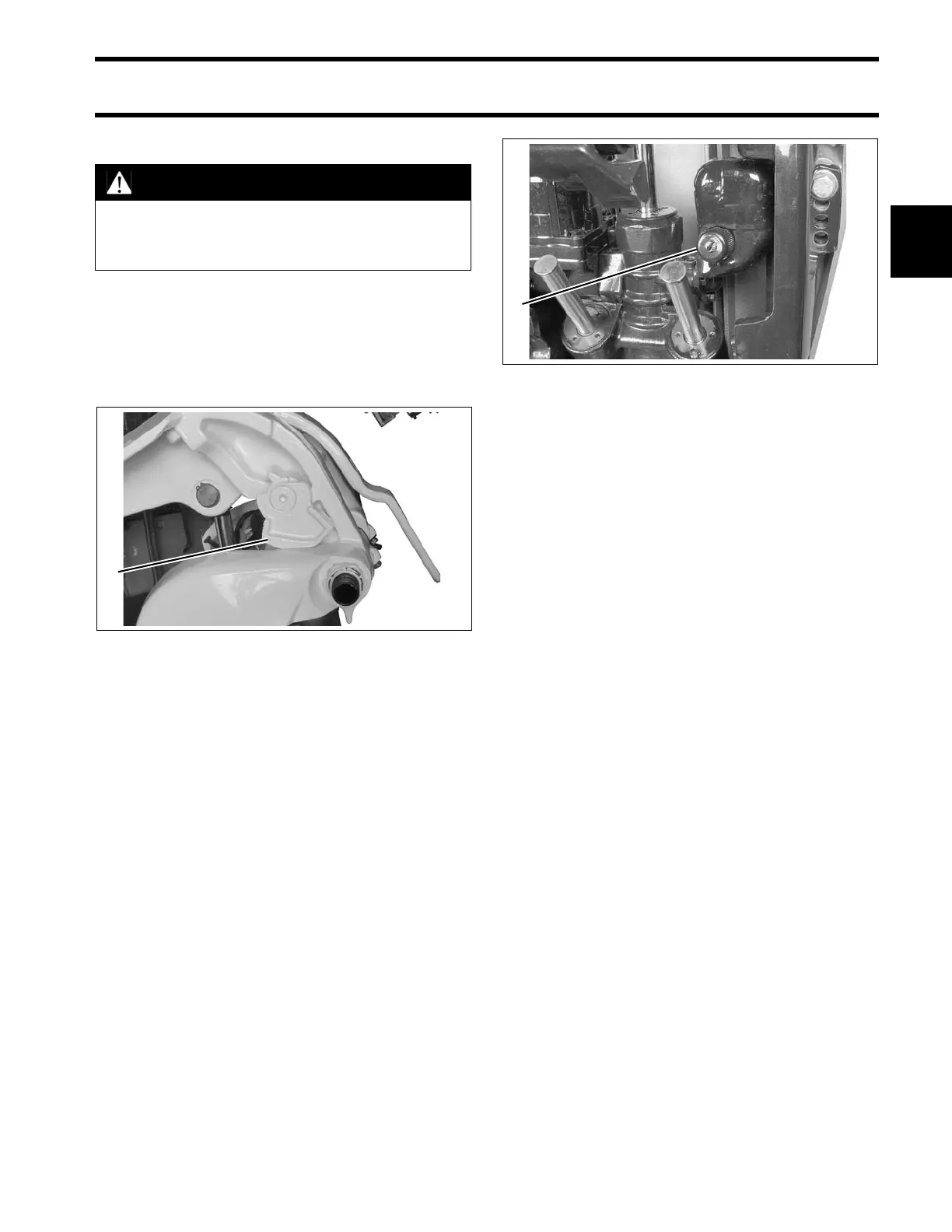

1. Tilt support bracket 002279
Three Ram System
1. Fill cap
004277
