Evinrude E-TEC 200 - Propeller Shaft Bearing Housing and Gear Installation - L2 Type

313
GEARCASE – STANDARD ROTATION
GEARCASE ASSEMBLY
13
Pad handle of holder to prevent damage to gear-
case.

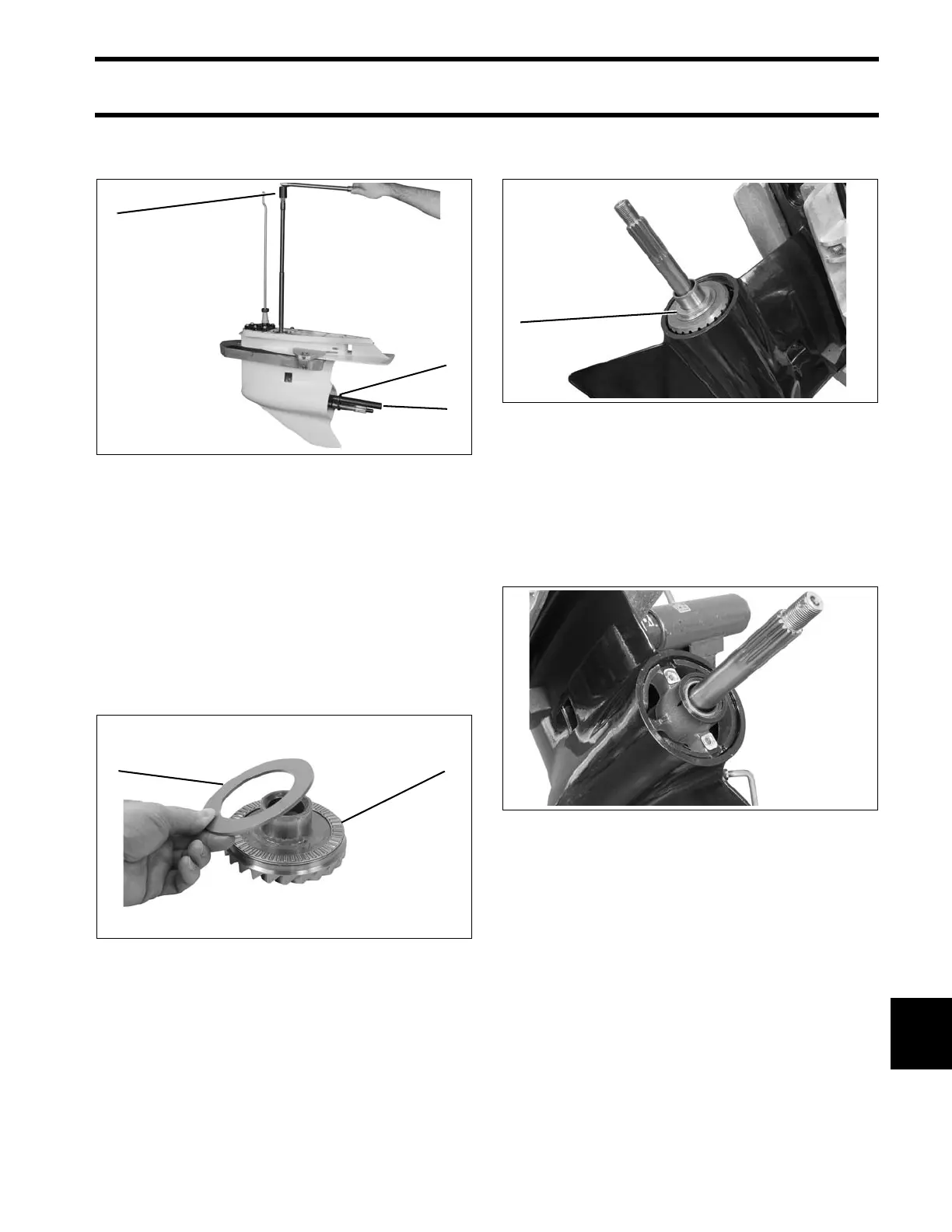

Propeller Shaft Bearing Housing
and Gear Installation – “L2” Type
IMPORTANT: The propeller shaft bearing hous-
ing on the “L2” type gearcases is PRESSED into
the gearcase housing.
Oil and install thrust bearing and thrust washer on
hub of reverse gear.
Slide the gear assembly onto the propeller shaft
until it engages the pinion gear.
Lightly apply Triple Guard Grease to a new bear-
ing housing O-ring. Install O-ring in groove in the
housing. Grease the machined side surfaces of
bearing housing.
Install housing into gearcase. Align screw holes
with retainer slots in gearcase.
Use Installer Handle, P/N 345822, Propeller Shaft
Bearing Housing Installer, P/N 354058, Gearcase
Fixture, P/N 354059 and an appropriate floor
press (10 ton or greater) to install housing into
1. Holding socket
2. Pinion holder
3. Retainer
006875
1. Thrust bearing
2. Thrust washer
006905
3
2
1
12
1. Thrust bearing and thrust washer 006843
006836
1
