Evinrude E-TEC 200 - Components; Electronic Servo Module (Esm); Shift Actuator

195
EVINRUDE ICON REMOTE CONTROL SYSTEM
COMPONENTS
10
COMPONENTS
The ICON remote control system consists of the
following components:
• ICON remote control and boat network
• One, two, three, four or five outboards
• Electronic Servo Module (ESM)
• Shift Actuator
• Throttle Actuator

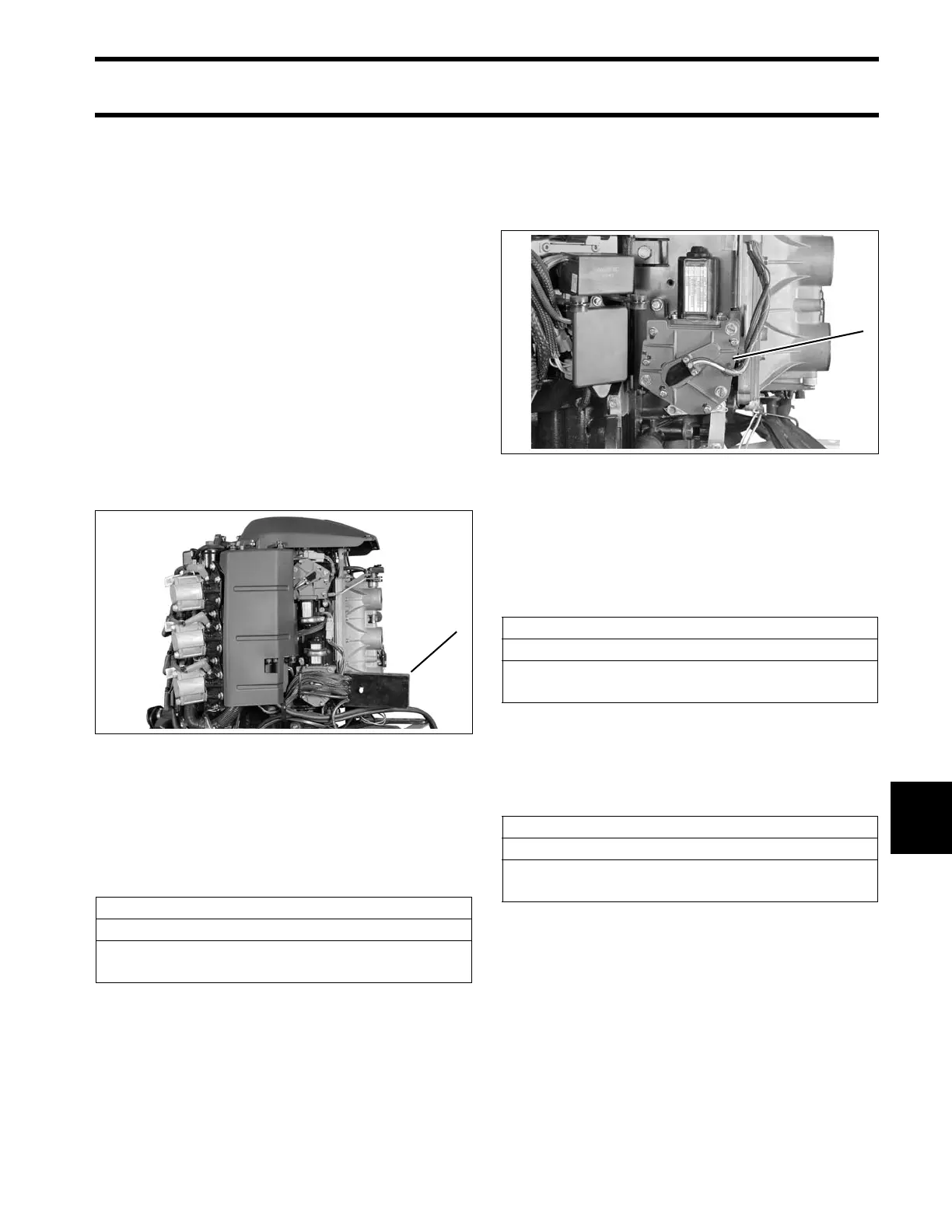

Electronic Servo Module (ESM)
The Electronic Servo Module (ESM) receives
shift, throttle and other control information from
the ICON remote control.
The ESM activates the shift and throttle actuators
to the positions commanded by the remote con-
trol.
If the ICON remote control cannot communicate
with the ESM, all LED indicators flash until control
levers and shift actuators are in NEUTRAL.
Then, the NEUTRAL indicator LED for the out-
board that has a fault flashes. The EMM:
Shift Actuator
The shift actuator converts electronic signals from
the ESM into the mechanical motion required to
shift the outboard into and out of gear.
If the shift actuator sensor cannot determine gear
position, all LED indicators flash until control
levers and shift actuators are in NEUTRAL.
Then, the NEUTRAL indicator LED for the engine
that has a fault flashes. The EMM:
If the shift actuator is unable to move to a com-
manded position, the FORWARD, NEUTRAL or
REVERSE indicator LED flashes to indicate which
gear position is affected. The EMM:
Electronic Servo Module (ESM) 007525
Activates S.A.F.E.
Stores service code 108 and 111
Engine Monitor display: RPM reduction, ICON
fault 111, see dealer
1
Shift Actuator 008505
Activates S.A.F.E.
Stores service code 108 and 151
Engine Monitor display: RPM reduction, ICON
fault 151, see dealer
Activates S.A.F.E.
Stores service code 108 and 152
Engine Monitor display: RPM reduction, ICON
fault 152, see dealer
1
