POWERHEAD
POWERHEAD REMOVAL
11
POWERHEAD REMOVAL

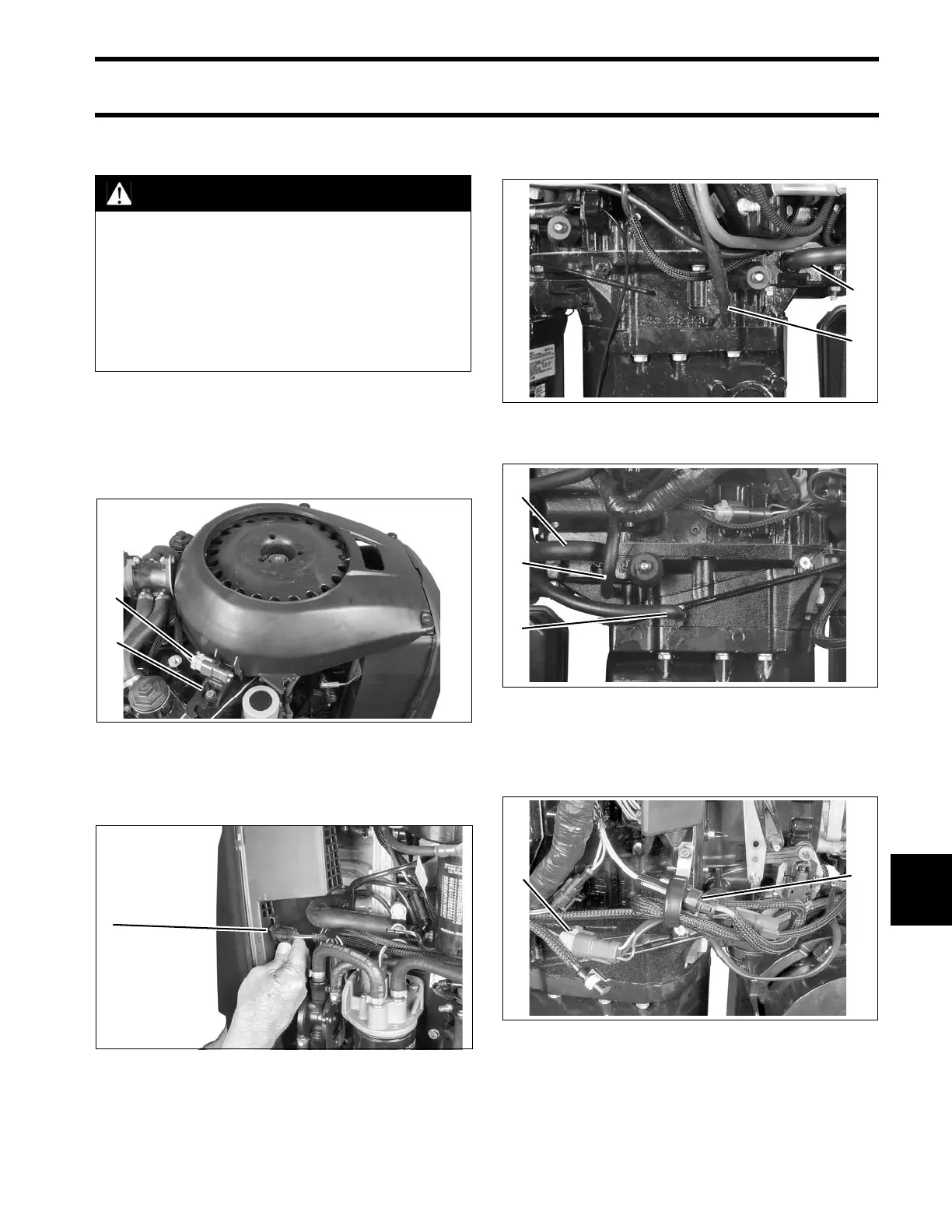

Remove lower motor covers. LOWER COVER
SERVICE on p. 51.
Disconnect diagnostic connector from clip and
remove flywheel cover.
Remove air temperature sensor from air silencer.
Remove the air silencer.
Remove water hoses and exhaust back pressure
hose from adapter.
Disconnect power trim connectors.
WARNING
Protect against hazardous fuel spray.
Before starting any fuel system service,
carefully relieve fuel system pressure.
Refer to Relieving Fuel System Pressure
on p. 143.
To prevent accidental starting while ser-
vicing, twist and remove spark plug leads.
1. Diagnostic connector
2. Flywheel cover screw
004237
1. Air temperature sensor 004219
Port Side
1. Cooling hose (to exhaust plenum)
2. Cooling hose (from vapor separator)
008443
Starboard side
1. Cooling hose (to exhaust plenum)
2. Exhaust back pressure hose (to EMM)
3. Cooling hose (from block) – 3.3 L models
005042
1. Trim/tilt connectors 004251
