EVINRUDE ICON REMOTE CONTROL SYSTEM
ICON COMPONENT SERVICING
Connect the shift actuator harness. Attach to clip
on mounting plate.
Secure shift actuator harness with tie strap,
P/N 317893.
Route all ESM harnesses as shown and secure to
shift actuator with tie straps, P/N 907833.
IMPORTANT: Do not install shift link until the
calibration procedure has been completed. Refer
to Calibrate Actuator Stroke on p. 205.
Throttle Actuator
Removal
Disconnect the battery cables at the battery.
Remove the flywheel cover. Remove the electrical
bracket cover.
Observe and note all wire routings before disas-
sembling.
Remove the throttle actuator connector from the
clip on the mounting plate. Disconnect the throttle
actuator harness.

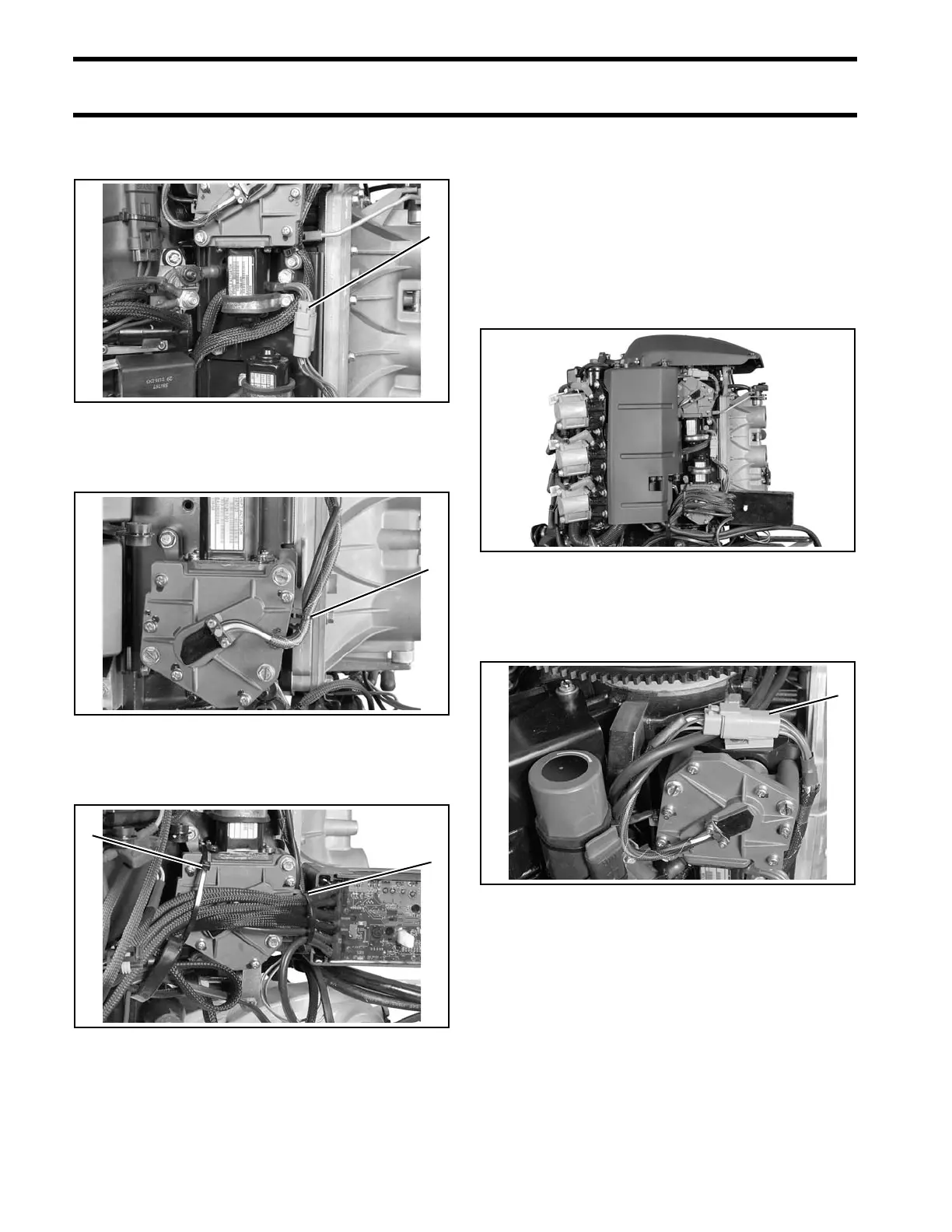

1. ESM to shift actuator harness 007498
1. Shift harness tie strap 007872
1. Large tie straps 008508
007525
1. Throttle actuator connector 007497
