Evinrude E-TEC 200 - Page 205

203

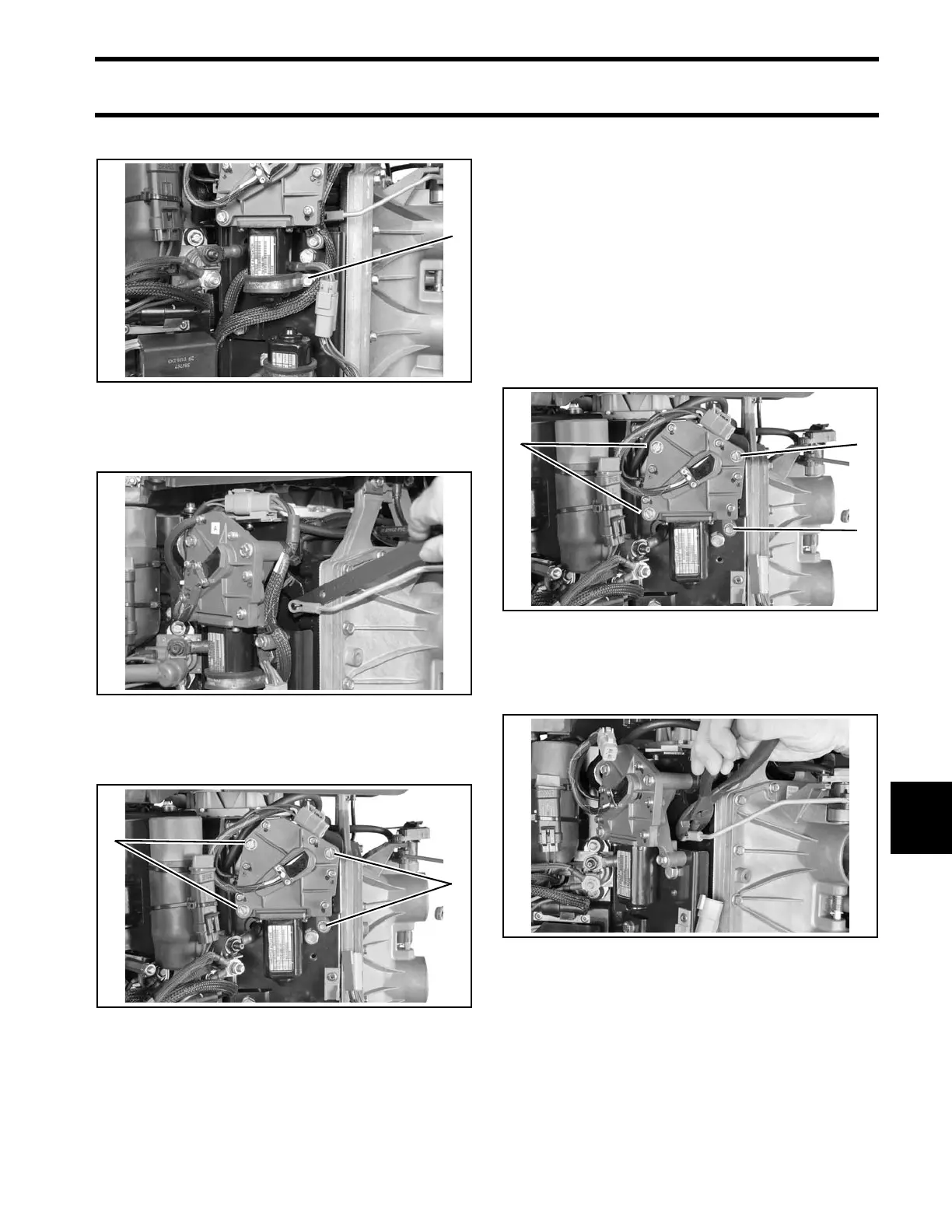

EVINRUDE ICON REMOTE CONTROL SYSTEM
ICON COMPONENT SERVICING
10
Remove the clamp retaining screw.
Use Ball Socket Remover tool, P/N 342226, to
remove throttle link from actuator arm.
Remove the four throttle actuator retaining
screws.
Installation
Remove old adhesive from clamp retaining screw
and shift actuator retaining screws.
Apply Nut Lock on the threads of the screws.
Install throttle actuator on mounting plate with
three long screws and one short screw. Tighten
screws to a torque of 60 to 84 in. lbs. (7 to 9.5
N·m).
Do not install clamp until wiring harnesses have
been secured.
Use Ball Socket Installer tool, P/N 342225, to
snap throttle link onto actuator arm.
1. Clamp retaining screw 007498
008034
1. Throttle actuator retaining screws 007302
1
1
1
1. Long screws
2. Short screw
007302
007303
1
2
1
