204
EVINRUDE ICON REMOTE CONTROL SYSTEM
ICON COMPONENT SERVICING
Secure ESM to throttle actuator harness with tie
strap, P/N 320107.
Route ESM to shift actuator harness behind throt-
tle actuator and over throttle actuator harness.
Place clamp over actuator motor. Install and
tighten screw to a torque of 60 to 84 in. lbs. (7 to
9.5 N·m).
Route the throttle actuator harness behind and
over the oil recirculation hose as shown. Connect
the throttle actuator harness. Attach to clip on
mounting plate.
Make sure the oil recirculation hose
is not pinched during assembly.
IMPORTANT: Calibrate actuator. Refer to Cali-
brate Actuator Stroke on p. 205.

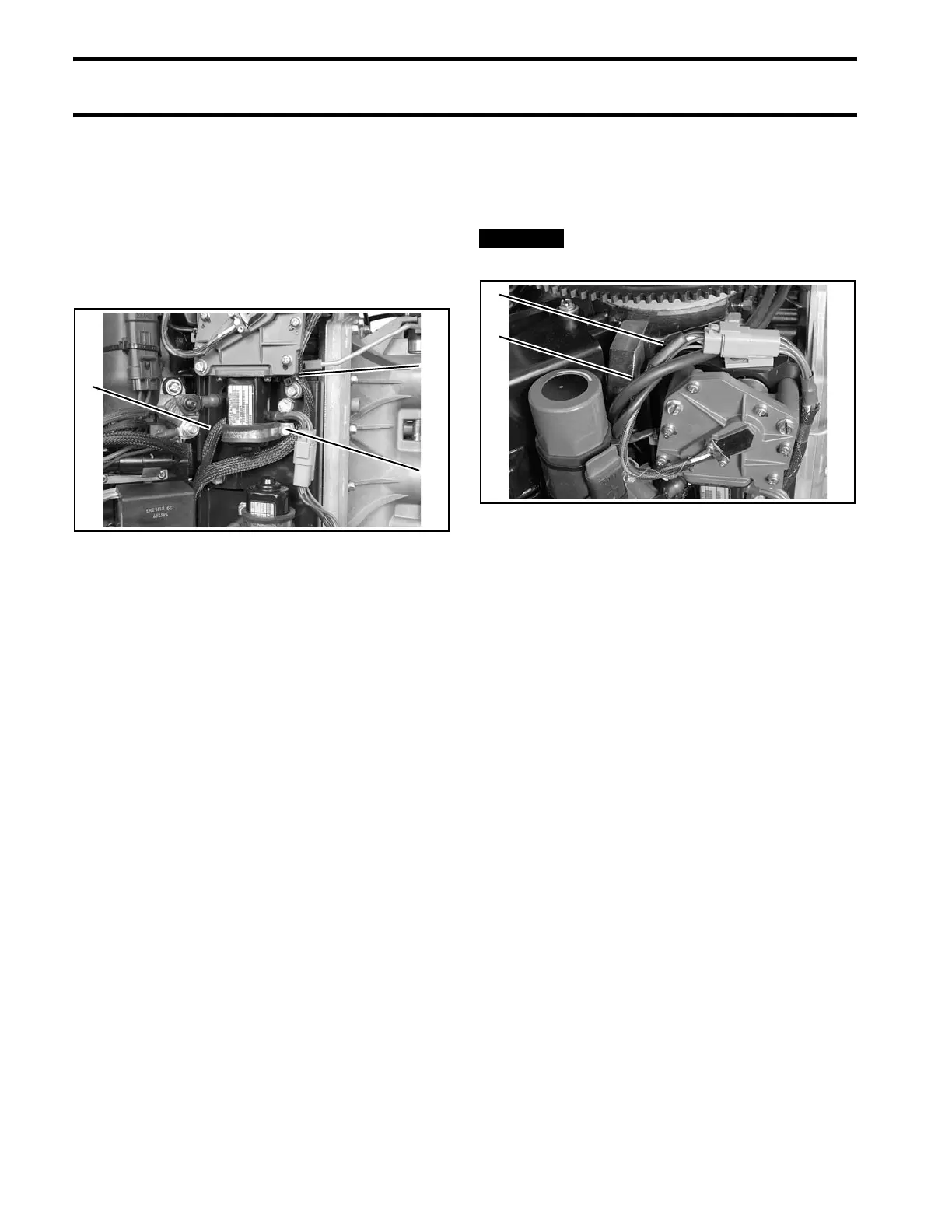

1. Tie strap
2. ESM to shift actuator harness
3. Clamp retaining screw
007498
1. Throttle actuator harness
2. Oil recirculation hose
007497
