265
MIDSECTION
EXHAUST HOUSING SERVICE
12

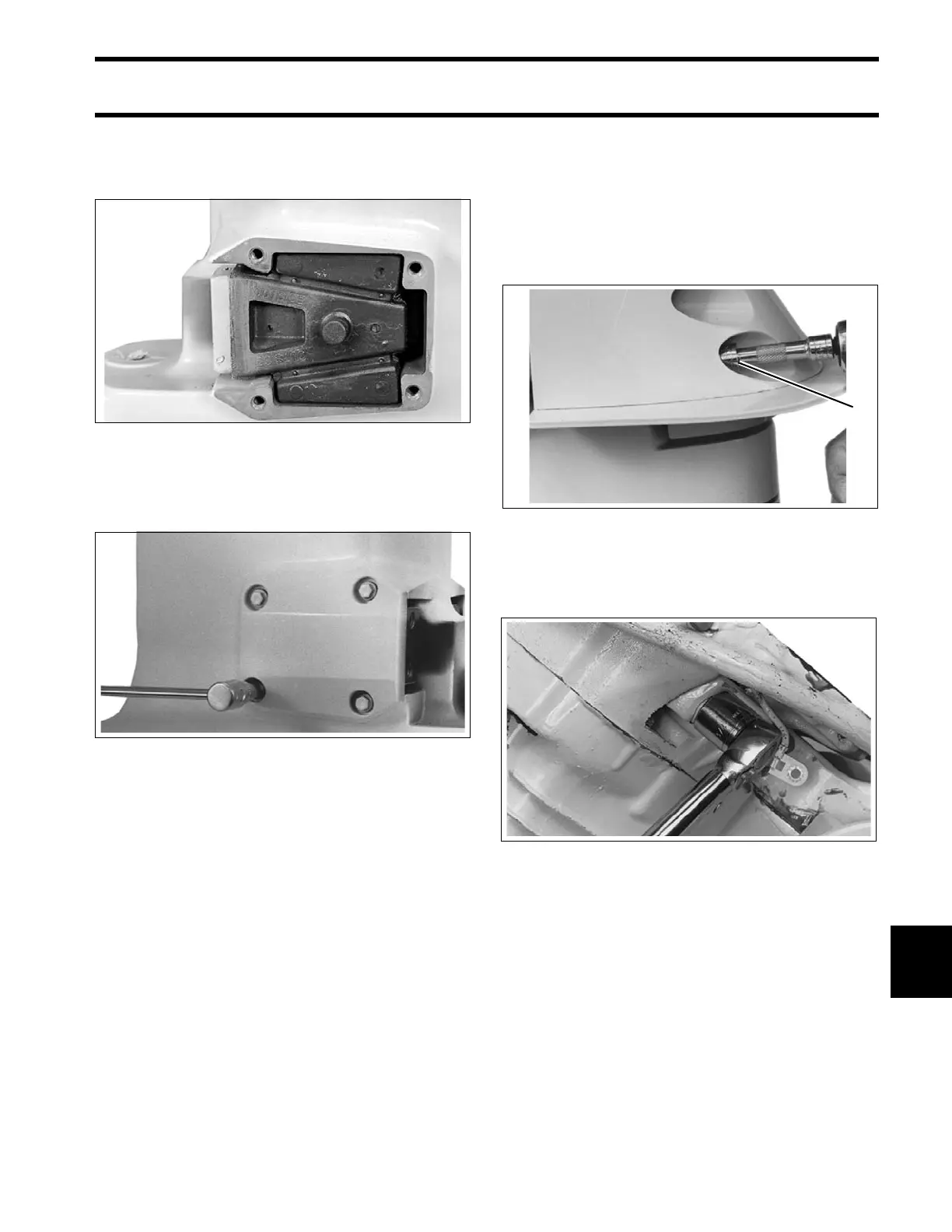

If removed, coat the lower mounts with soapy
water and press into the exhaust housing with the
“OUTSIDE” mark facing outward.
Install the mount covers. Apply Nut Lock to
screws, install washers and screws, and tighten to
a torque of 156 to 180 in. lbs. (18 to 20 N·m).
Exhaust Housing Installation
Bring the exhaust housing into position with the
stern bracket.
Install four new lower mount screws with lock-
patch. Tighten screws to a torque of 38 to 45 ft.
lbs. (51 to 61 N·m).
Apply Ultra Lock to upper mount screws and
tighten to a torque of 64 to 72 ft. lbs. (87 to 98
N·m).
23033
32579
1. Lower mount screws 32590
7716
