GEARCASE – STANDARD ROTATION
SHIFTER, BEARING AND SEAL SERVICING
13
Bearing Installation
Oil, then install new bearings in bearing housing.
Place the lettered end of the bearing case on the
bearing installer, then press the bearing into the
housing until the tool seats. When installed, the
lettered end of the bearing should be visible.
STANDARD ROTATION HOUSING
Bearing Installation Tool:
• P/N 354139 – front and rear bearings
COUNTER ROTATION HOUSING
Bearing Installation Tool:
• P/N 432401 – front bearing
• P/N 354139 – rear bearing

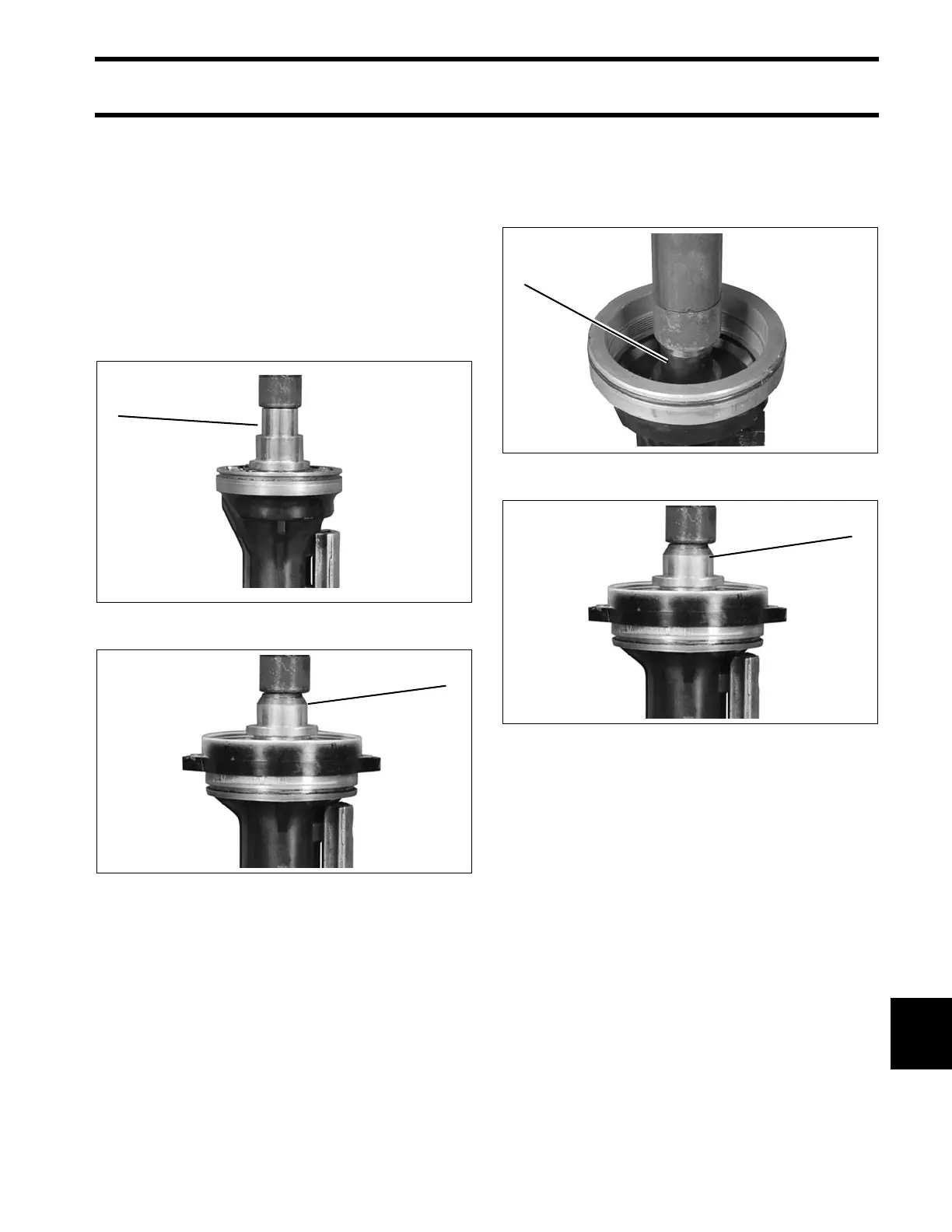

Front Bearing
1. Bearing installation tool
006909
Rear Bearing
1. Bearing installation tool
006910
Front Bearing
1. Bearing installation tool
006945
Rear Bearing
1. Bearing installation tool
006910
