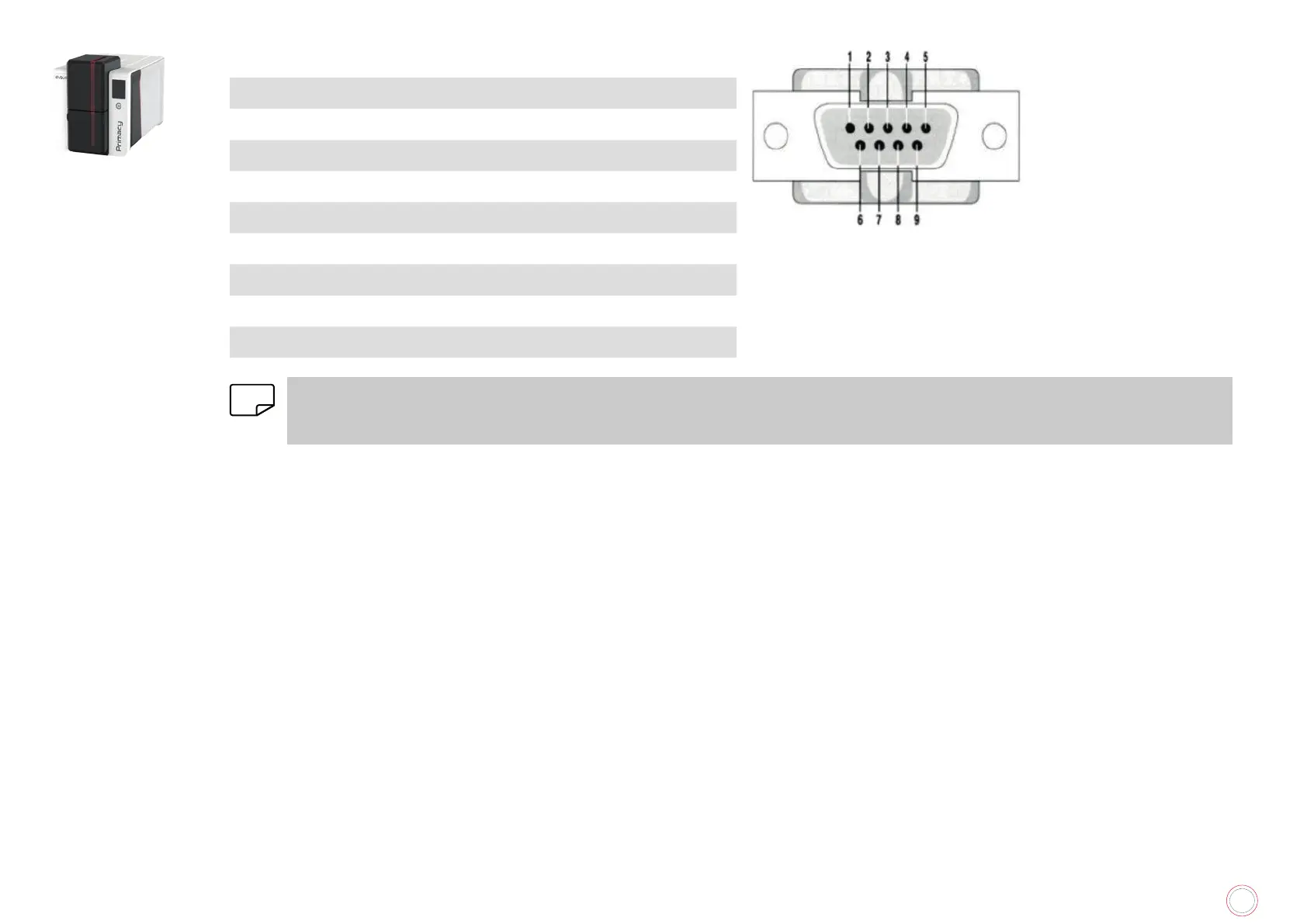

DB-9 connector pins Smartcard contact points
1 C1 (V c.c.)
2 C2 (reset)
3 C3 (clock)
4 C4 (reserved)
5 C5 (ground)
6 C6 (Vpp)
7 C7 (I/O)
8 C8 (reserved)
9 Card present signal
NOTE
Refer to the Programming Guide for the Evolis printer to get more information on programming a smartcard and the Option

A smartcard can be encoded with the CardPresso software or Evolis Premium SDK and the SDK of the encoder.
