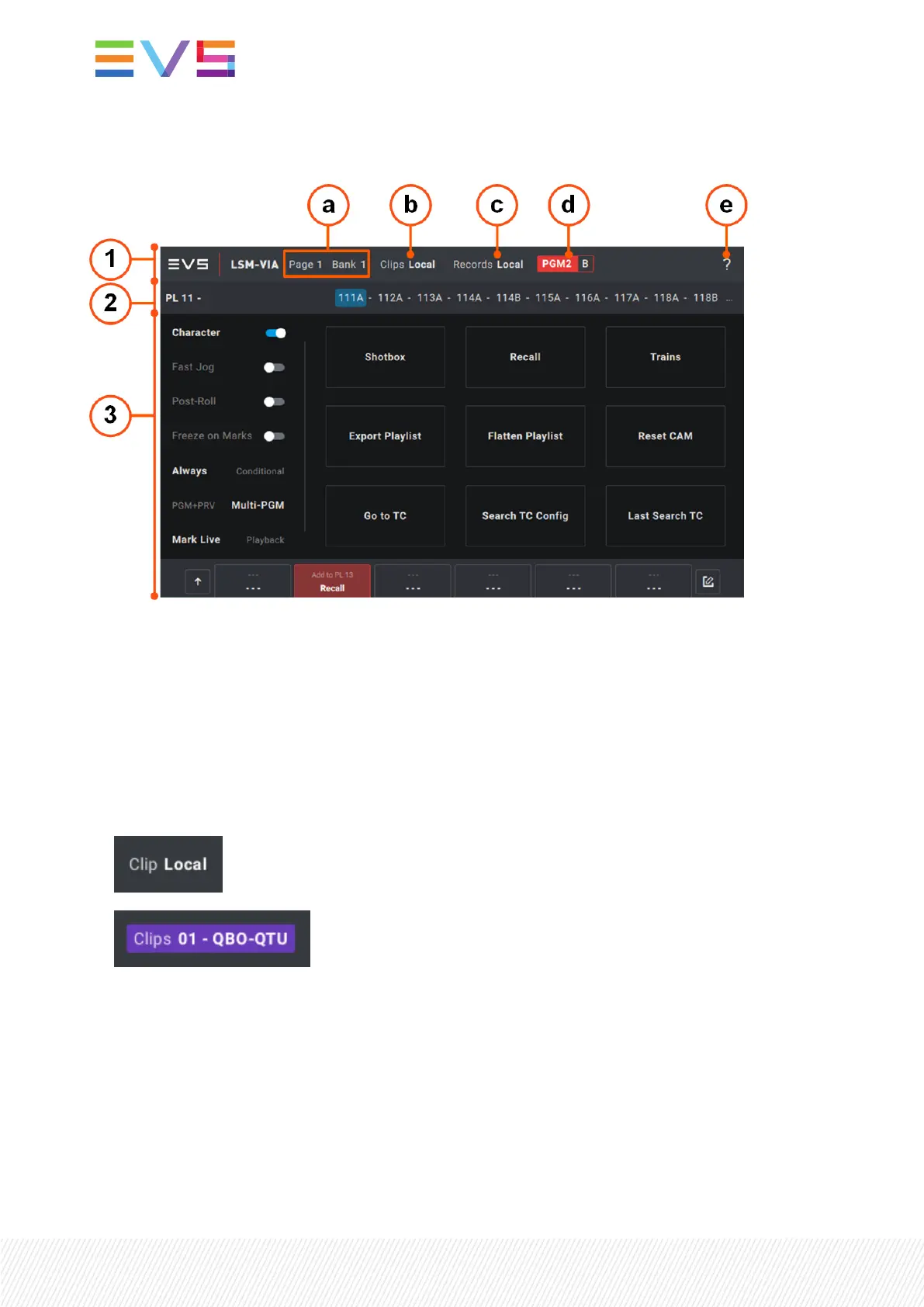

At startup, the touchscreen shows the Live screen and features the areas highlighted on the screenshot
below.
Application Bar (1)
This area is displayed in Live mode, Clip mode, Playlist mode.
a. Page and Bank Fields
Read-only fields showing the active page and bank.
b. Clip Field
This field specifies on which server the displayed clips are stored on.
• (default): features the local server.
• : when a remote server has been selected.
The server netnumber and netname are provided and the purple background highlights the remote
state.
c. Records Field
This field specifies to which server the displayed record trains correspond.
Currently, it is always Local as the displayed record trains are always those of the local server, that is the
server specified in the LSM-VIA configuration tool.
12| January 2022 | Issue 1.4.G
