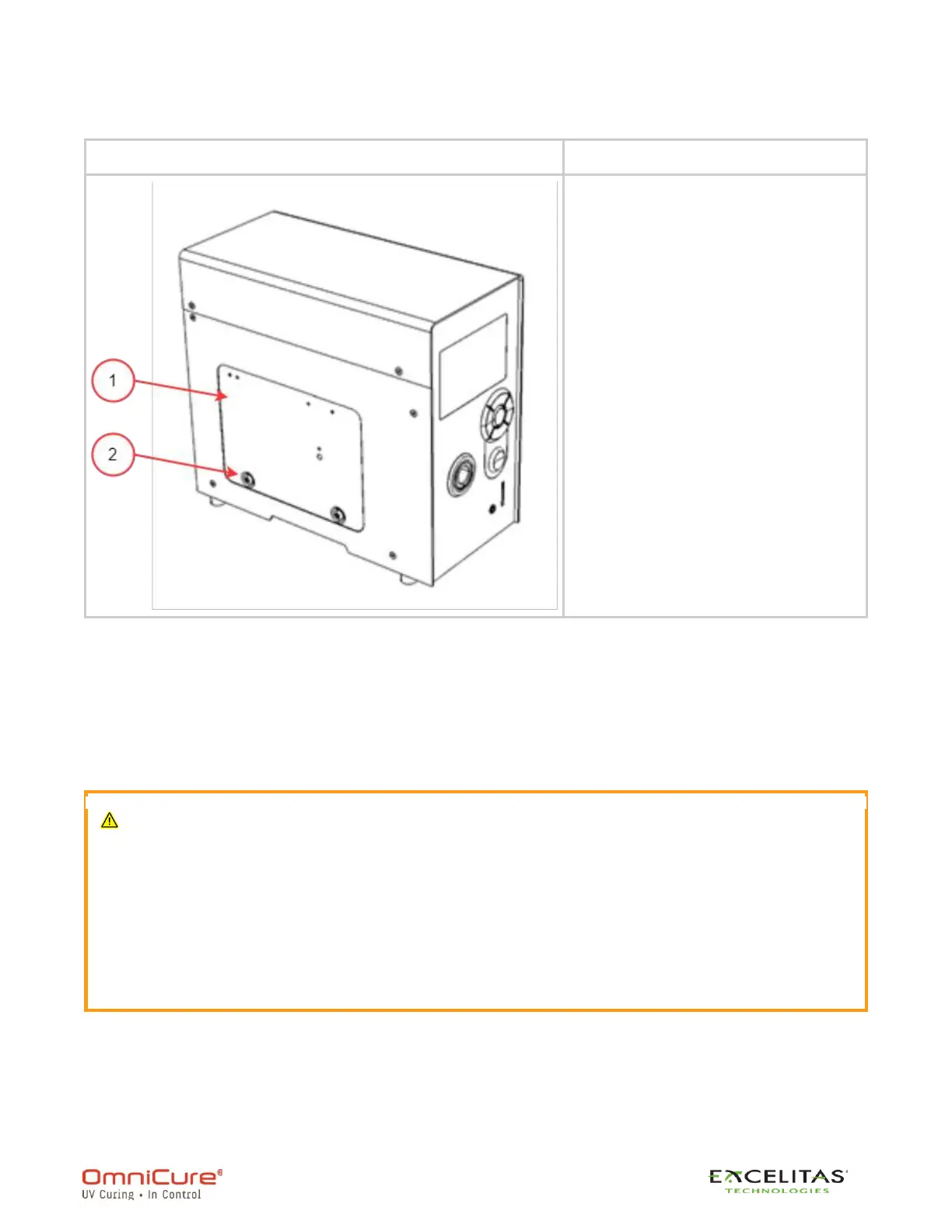

1. Loosen the two hex socket screws from the lamp housing side panel using the tool
provided (3mm Allen key) and remove the panel from the unit cover.
2. Carefully remove the lamp module from its container by holding either the ceramic
component or the lamp rim only, as shown in Figure 2.
3. Position the lamp as illustrated in Figure 2, facing towards the unit's front panel and the
POWER leads facing away from the unit. The lamp should be aligned so that the
leading edge of the reflector (lamp rim) fits into the mounting groove on the lamp holder
assembly.
The lamp module’s operational life can be significantly shortened if handled
incorrectly. Be sure only to handle the ceramic surfaces and the lamp rim. Do not
touch the bulb’s glass envelope or the inside surface of the reflector. Skin oils can
cause the lamp module to fail prematurely.
The lamp is sensitive to ESD. Wear ESD protective clothing when handling the lamp
to prevent ESD damage.
