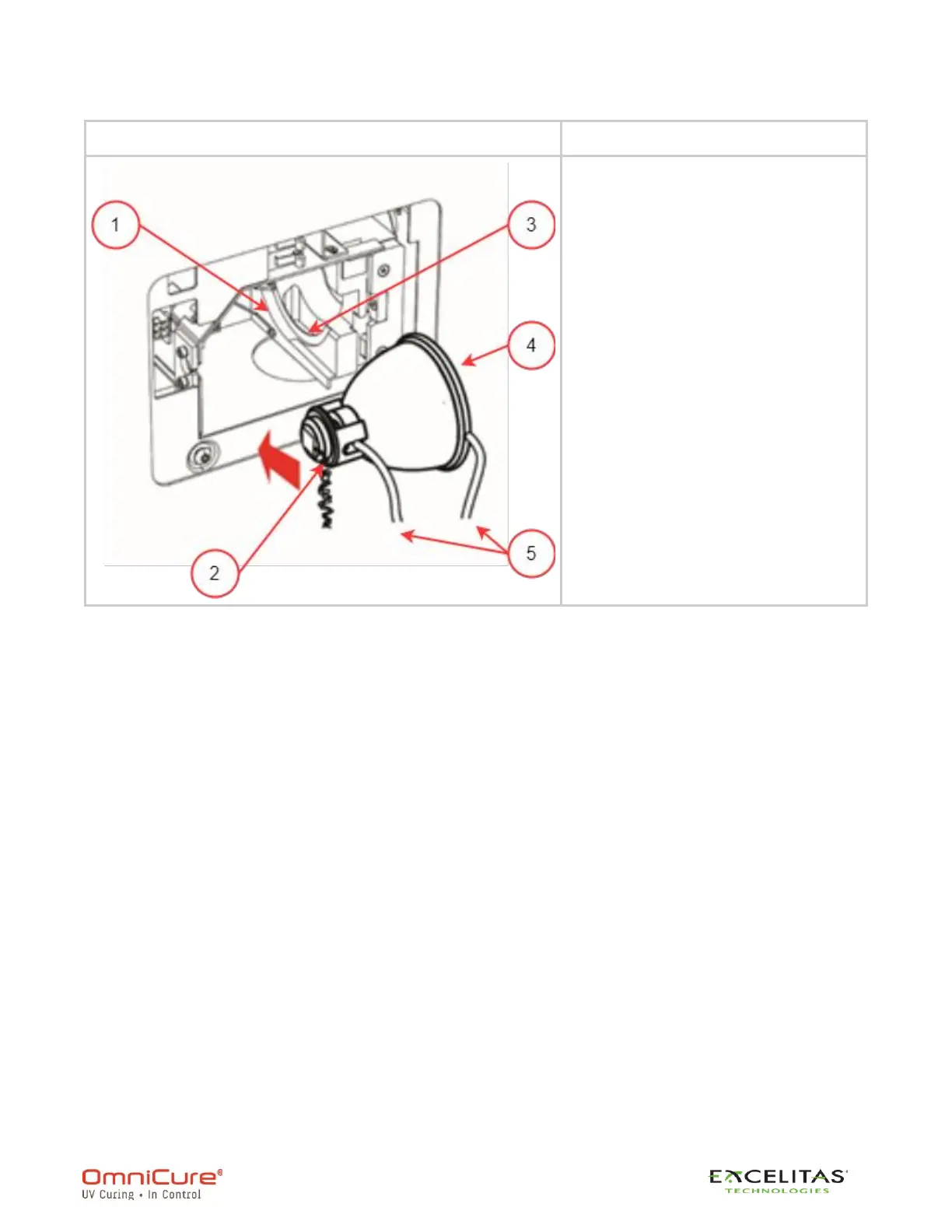

Figure 2: Lamp Direction
1. Spring Clamp
2. Ceramic Component
3. Lamp Holder
4. Lamp Rim
5. Power Leads
1. Ensure that the middle body of the lamp is in position to fit into the spring clamp shown
in Figure 2.
2. Slide the lamp in until it snaps into the spring clamp. The leading edge of the reflector
(lamp rim) should fit snugly into the lamp holder recess.
3. Adjust or rotate the lamp to ensure that the right power lead is not in contact with any
part of the lamp holder. It should be centered within the lamp holder cut-out shown in
Figure 3.
