Setting Up Your FTB-1v2 and FTB-1v2 Pro

98 FTB-1v2 and FTB-1v2 Pro

Selecting the Language of Operation

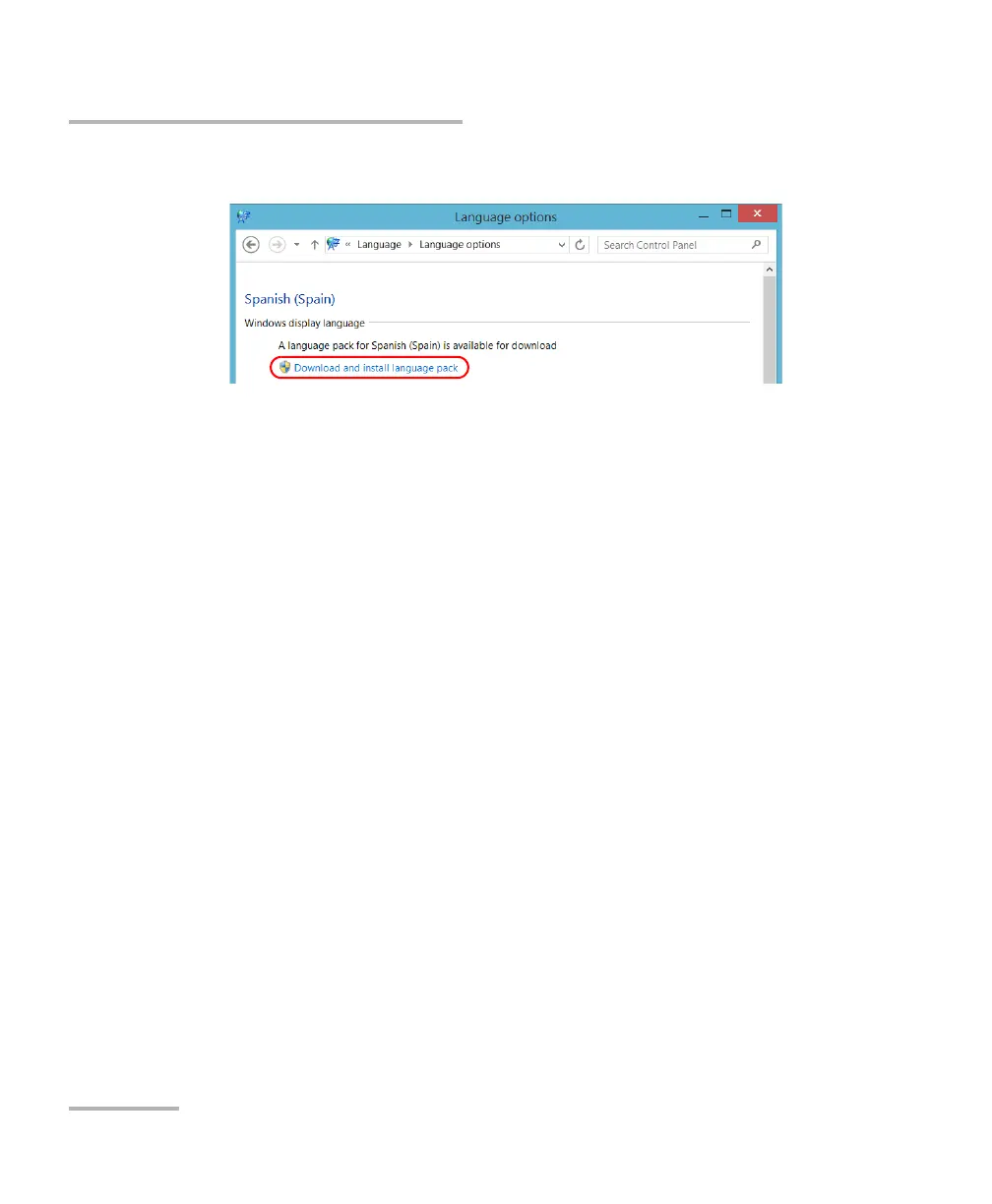

11. Tap Download and install language pack.

12. When the application prompts you to allow the installation, tap Yes.

The installation may take a few minutes.

13. When the installation is complete, restart your unit.

Table of Contents3
