Setting Up Your FTB-1v2 and FTB-1v2 Pro

FTB-1v2 and FTB-1v2 Pro 111

Configuring the Power Management Options

4. From the list of available power plans, locate the set of parameters that

you want to modify or delete.

Note: You can only delete custom power plans, not predefined ones. If the custom

power plan that you want to delete is currently in use, you must select

another plan first.

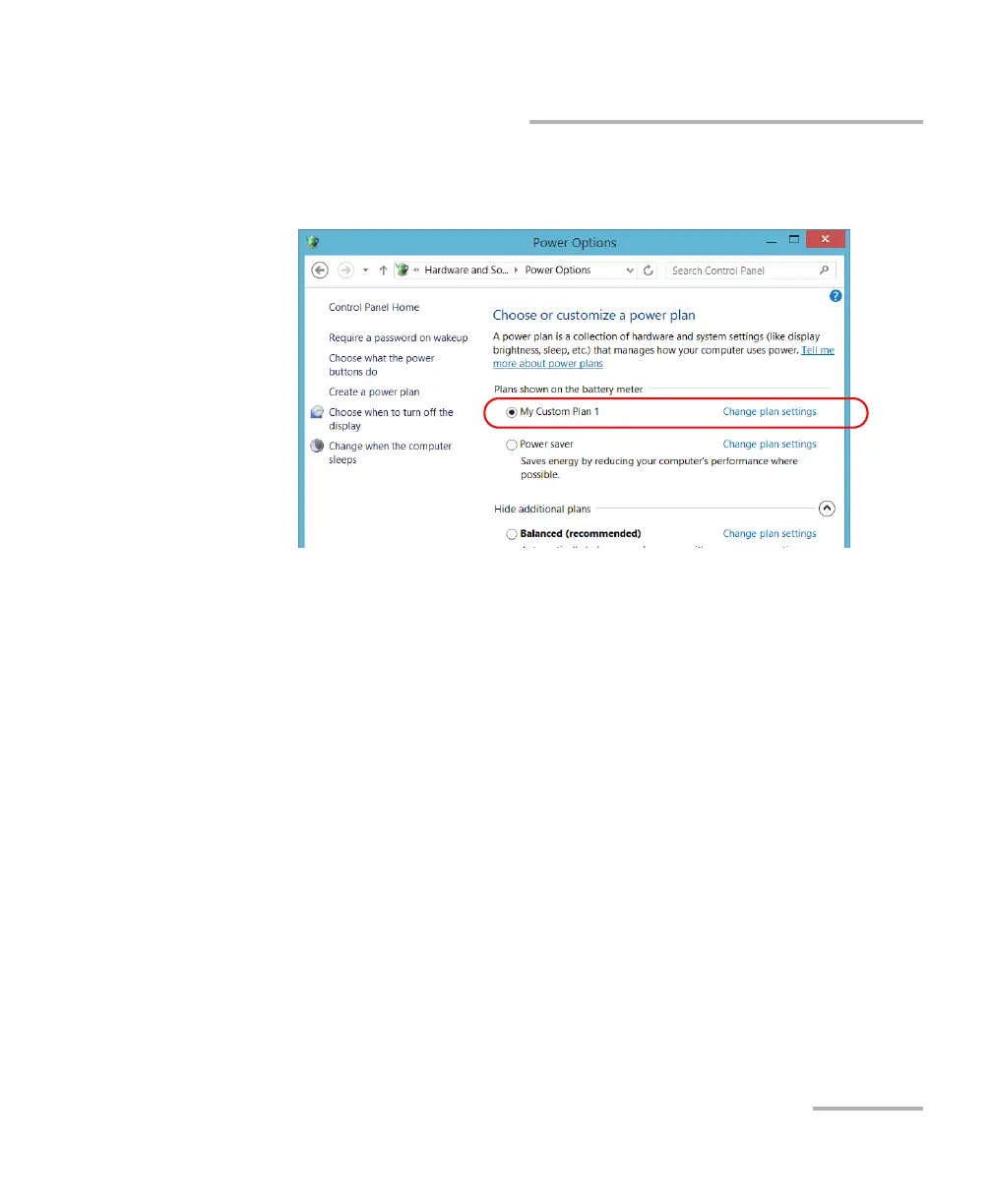

5. Tap Change plan settings (appearing next to the power plan).
