Managing Data

FTB-1v2 and FTB-1v2 Pro 159

Transferring Data via the Bluetooth Technology

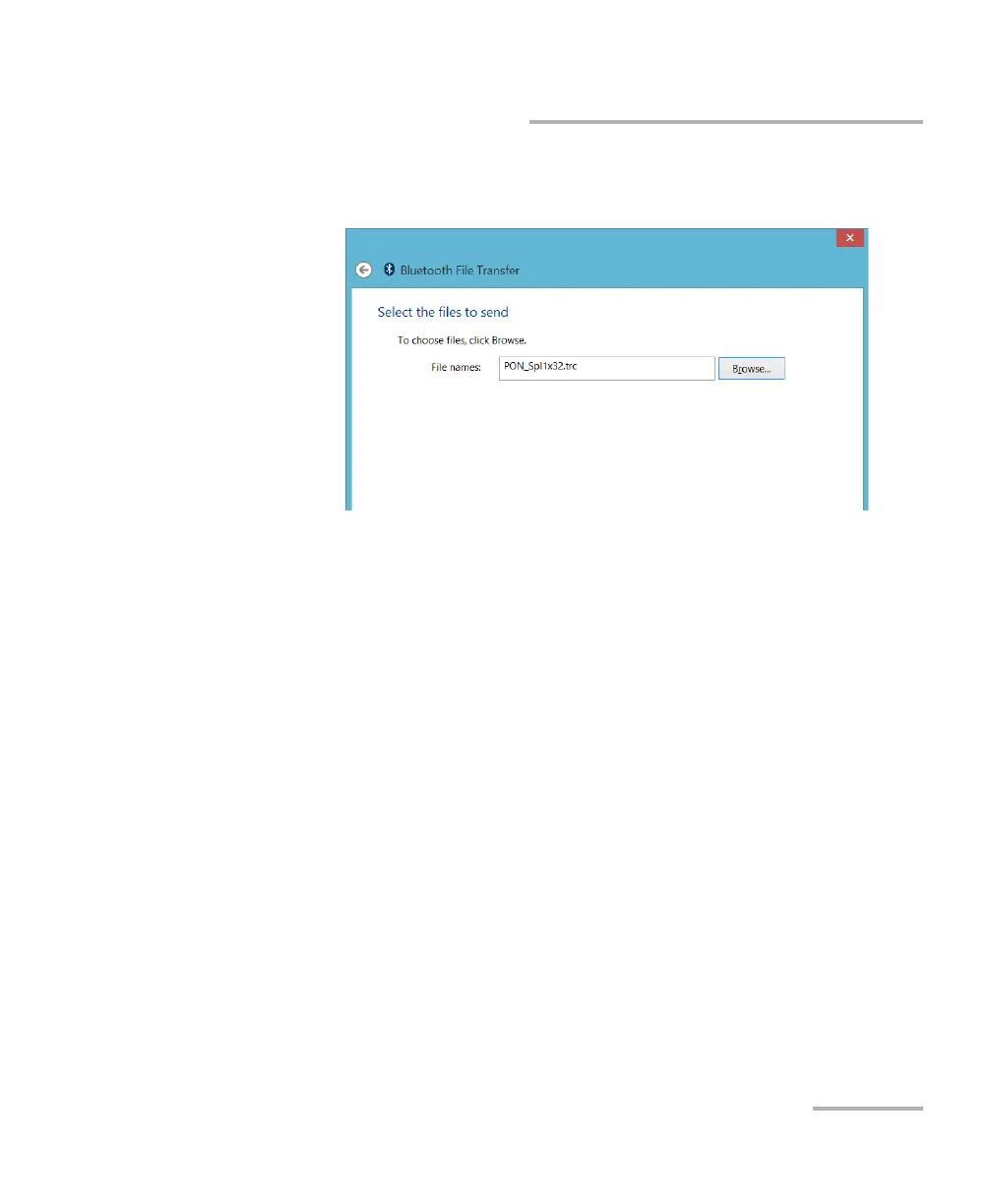

2e. Tap the Browse button to select the file that you want to transfer,

and then tap Next.

2f. Tap Finish when the transfer is complete.
