Managing Data

158 FTB-1v2 and FTB-1v2 Pro

Transferring Data via the Bluetooth Technology

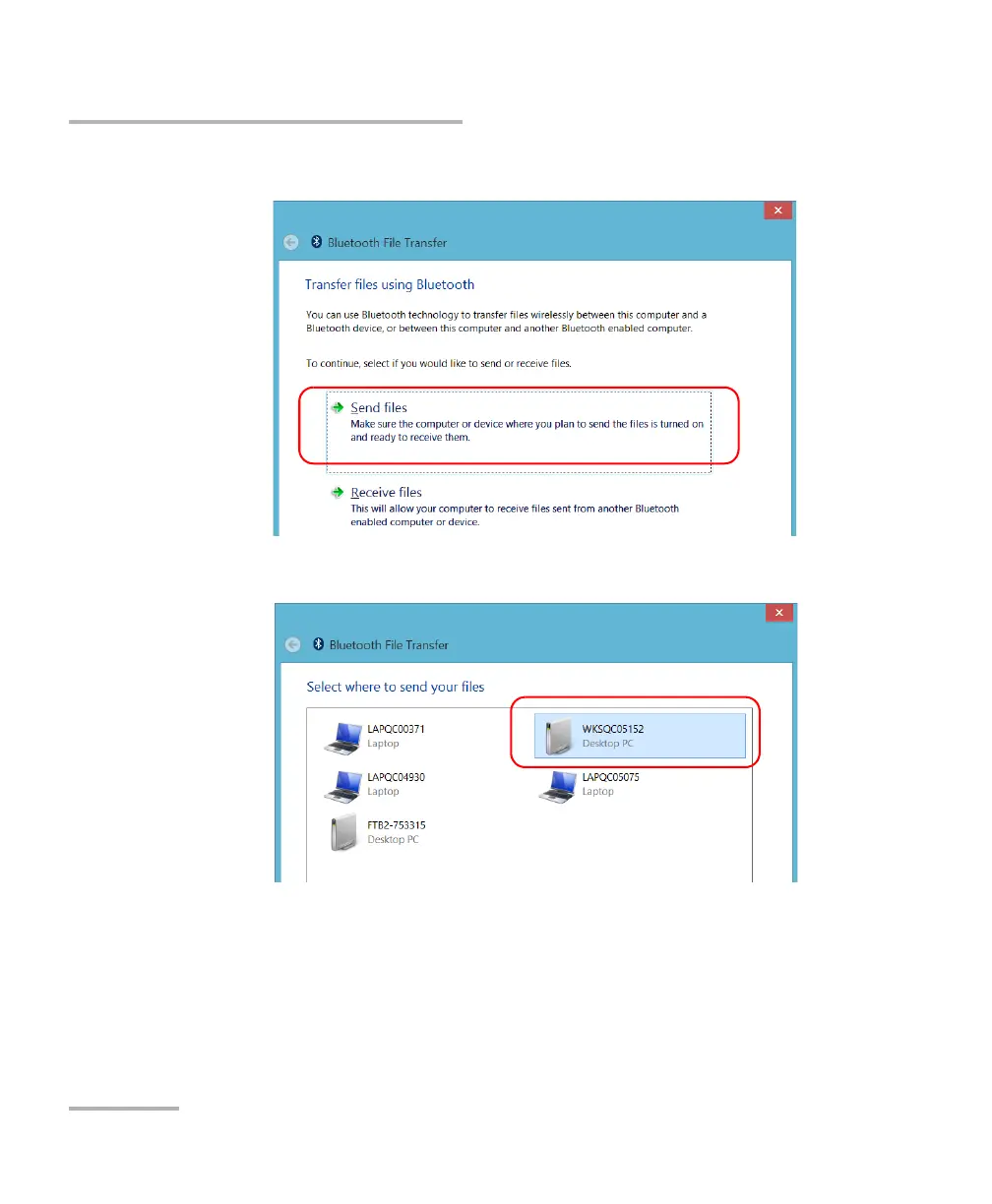

2c. Select Send files.

2d. Select the desired computer, and then tap Next.

Main Page
