Managing Data

FTB-1v2 and FTB-1v2 Pro 165

Using the USB to RS-232 Adapter

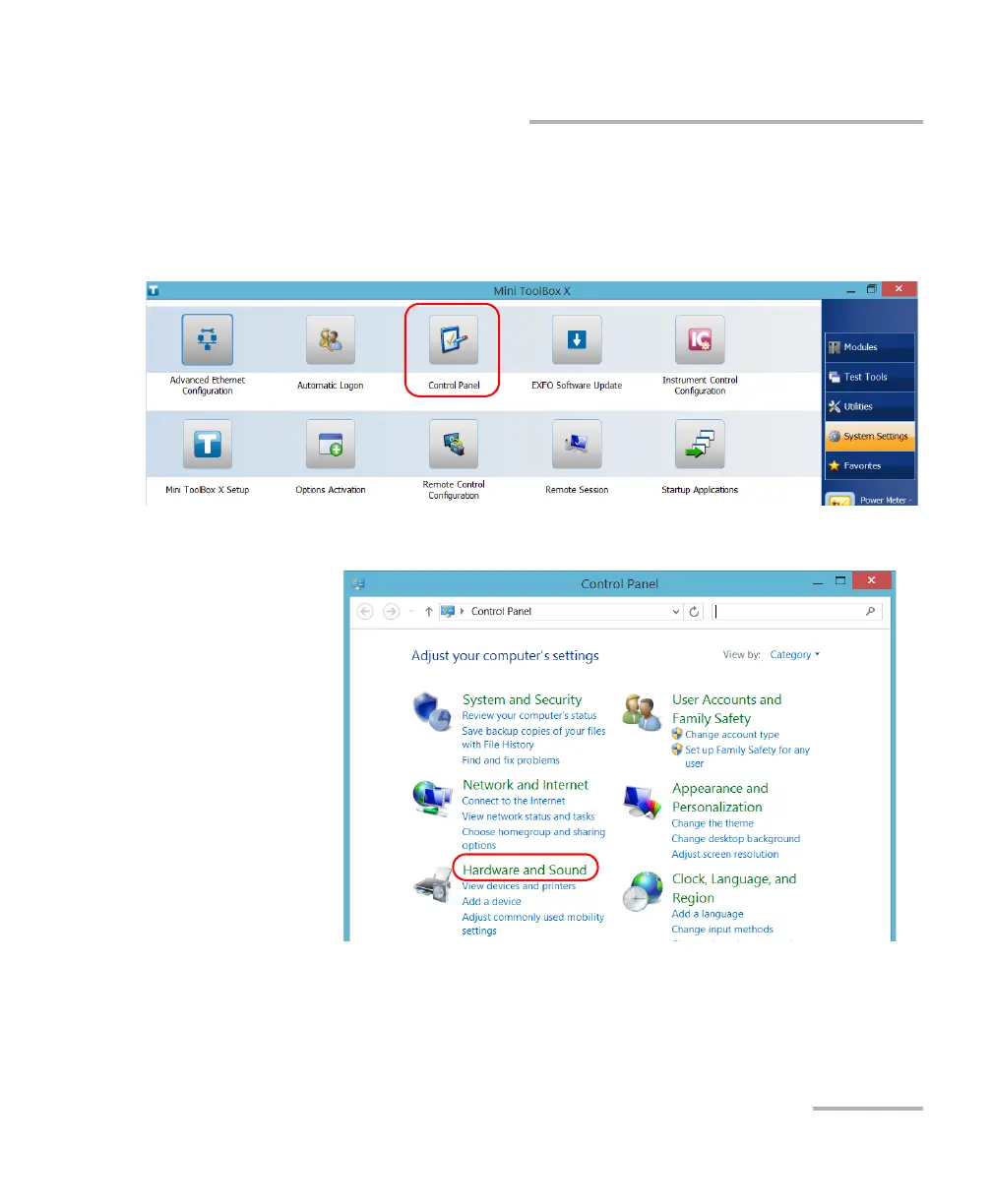

3. From your unit, retrieve the COM port of the adapter as follows:

3a. From the main window, tap the System Settings button.

3b. Tap Control Panel.

3c. Tap Hardware and Sound.
