Troubleshooting

320 FTB-1v2 and FTB-1v2 Pro

Restoring Your Unit to Normal Operation

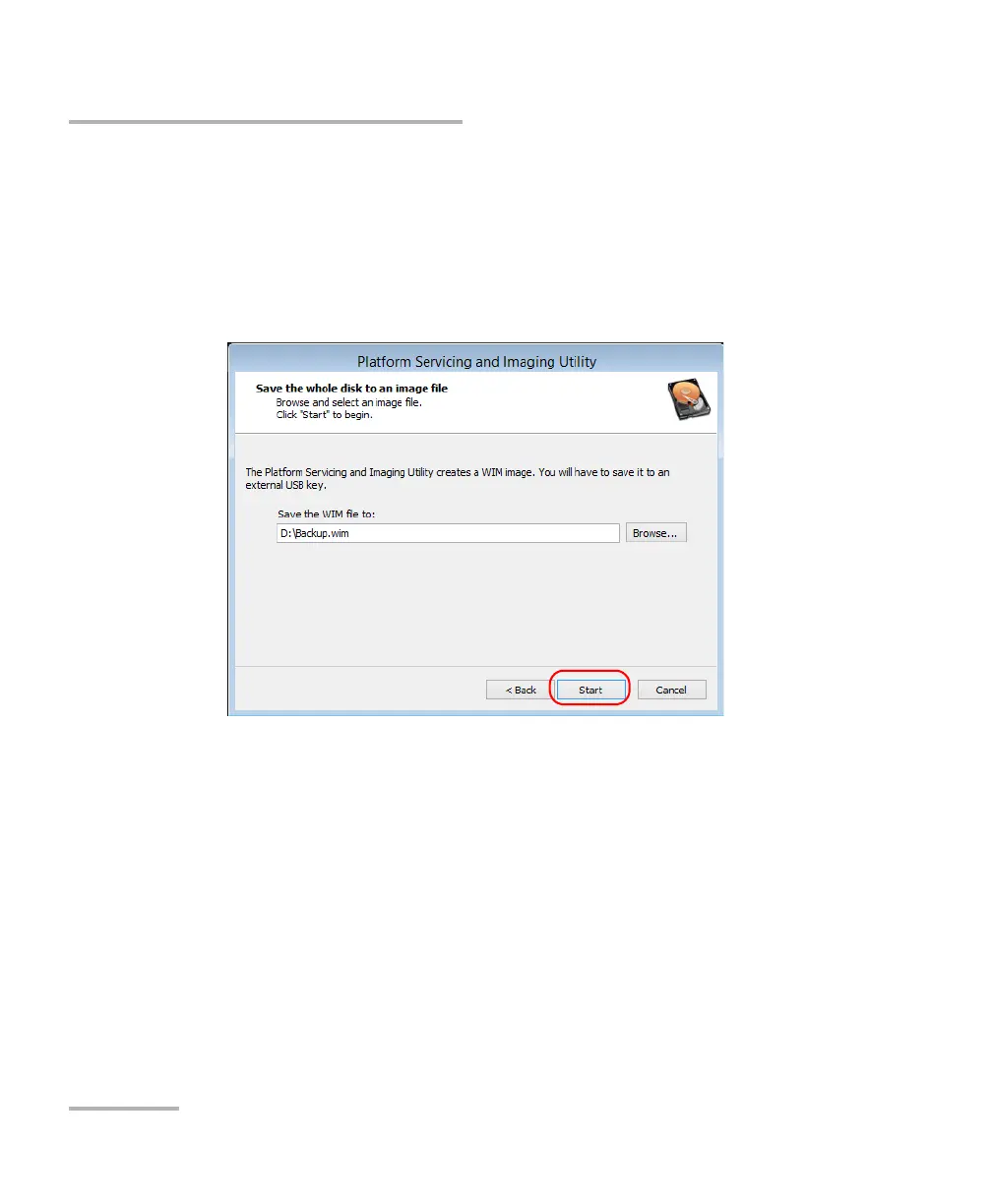

10. Locate the USB key, and then double-tap its identifier to access the

contents.

11. Select the desired folder.

12. Enter a file name, and then tap Save.

13. Tap Start.

Note: The time required to create the image varies with the configuration of your

unit.

14. When the operation is complete and the application prompts you, tap

OK.

15. Disconnect the USB key.
