Troubleshooting

FTB-1v2 and FTB-1v2 Pro 321

Restoring Your Unit to Normal Operation

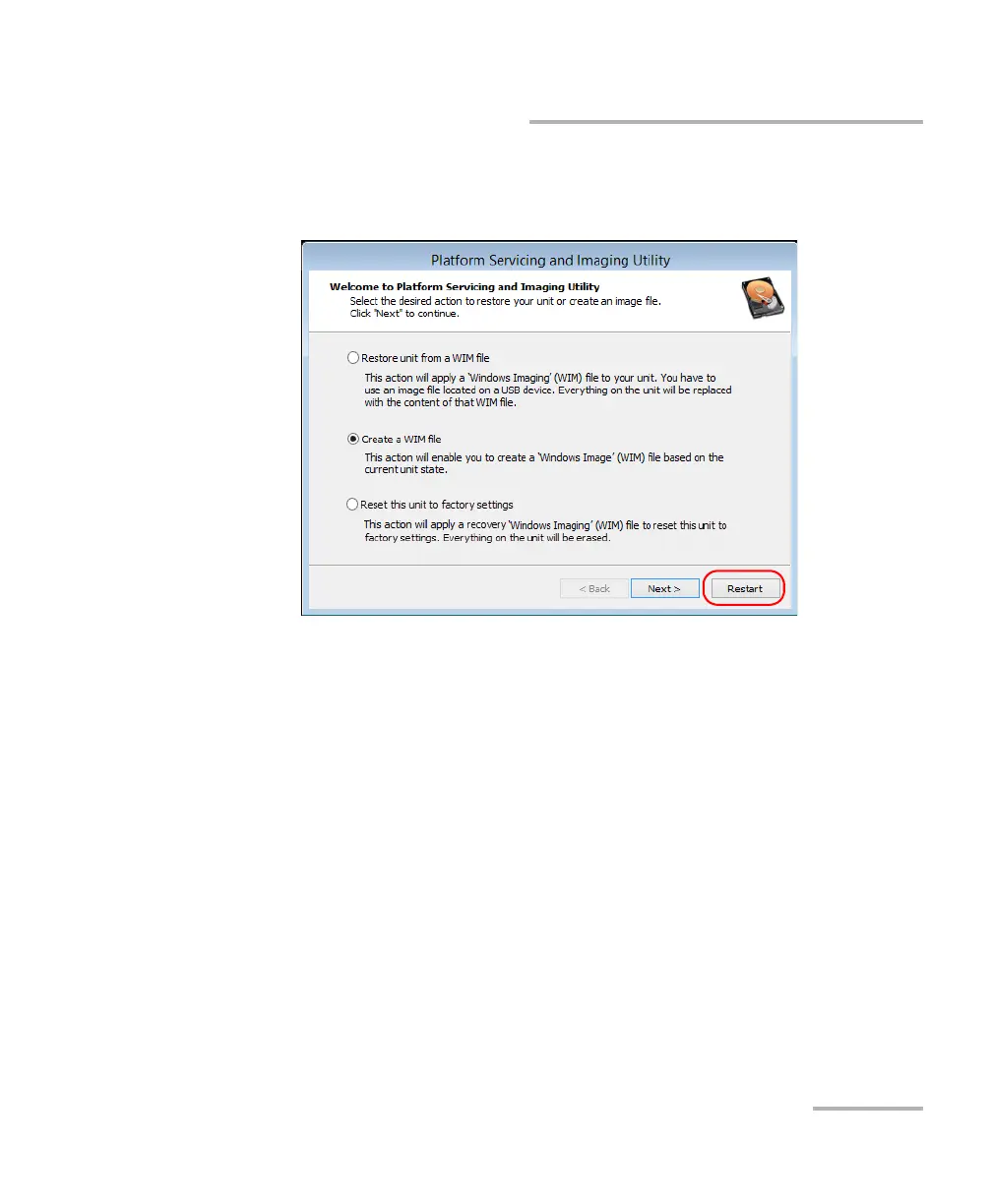

16. Tap Cancel to return to the Welcome window of the utility.

17. Tap Restart.

The WIM file is ready for future use.
