Troubleshooting

334 FTB-1v2 and FTB-1v2 Pro

Restoring Your Unit to Normal Operation

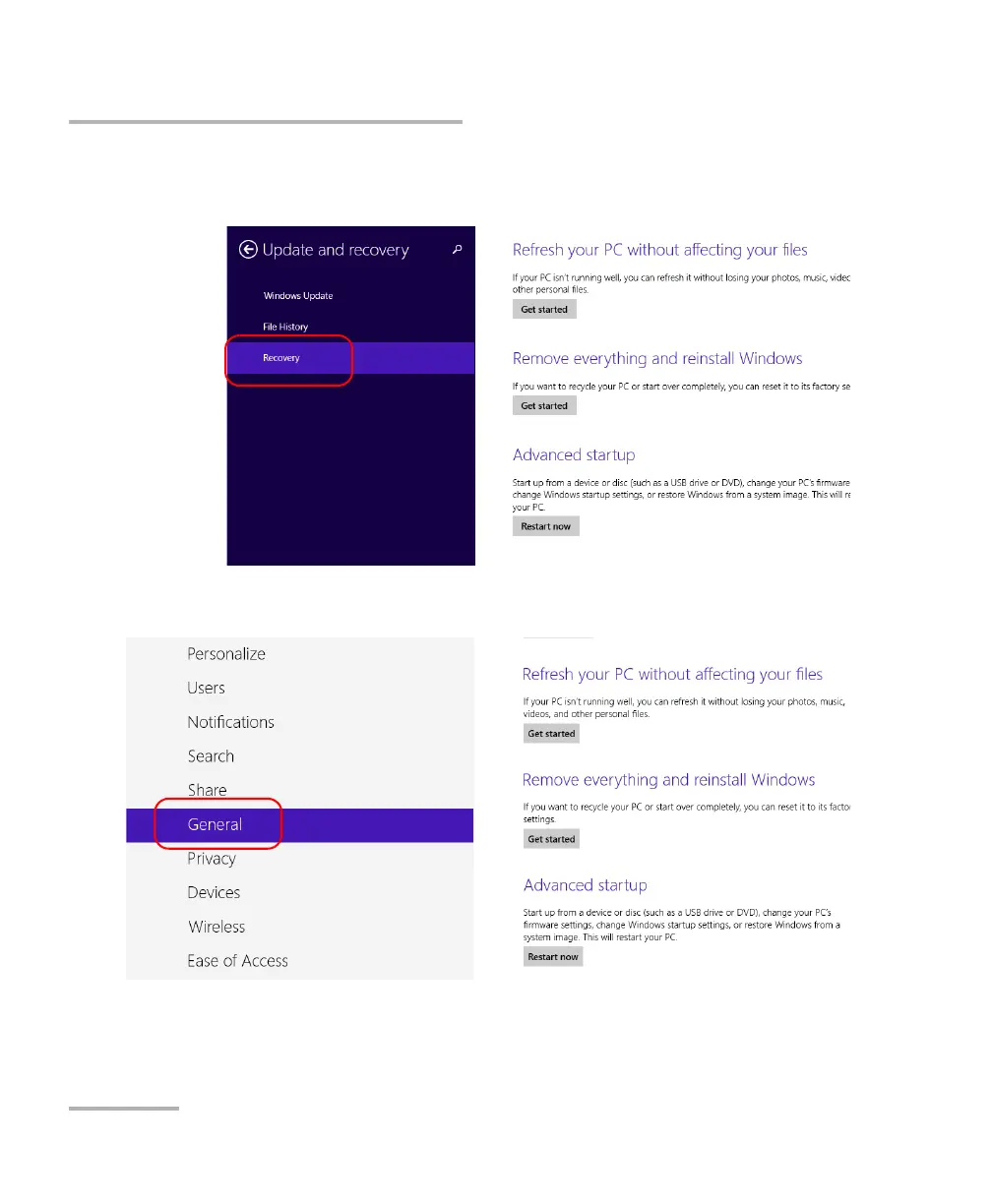

4. On an FTB-1v2 Pro, tap Recovery.

On an FTB-1v2, tap General, and then scroll down the list.

FTB-1v2 Pro

FTB-1v2
