Troubleshooting

FTB-1v2 and FTB-1v2 Pro 335

Restoring Your Unit to Normal Operation

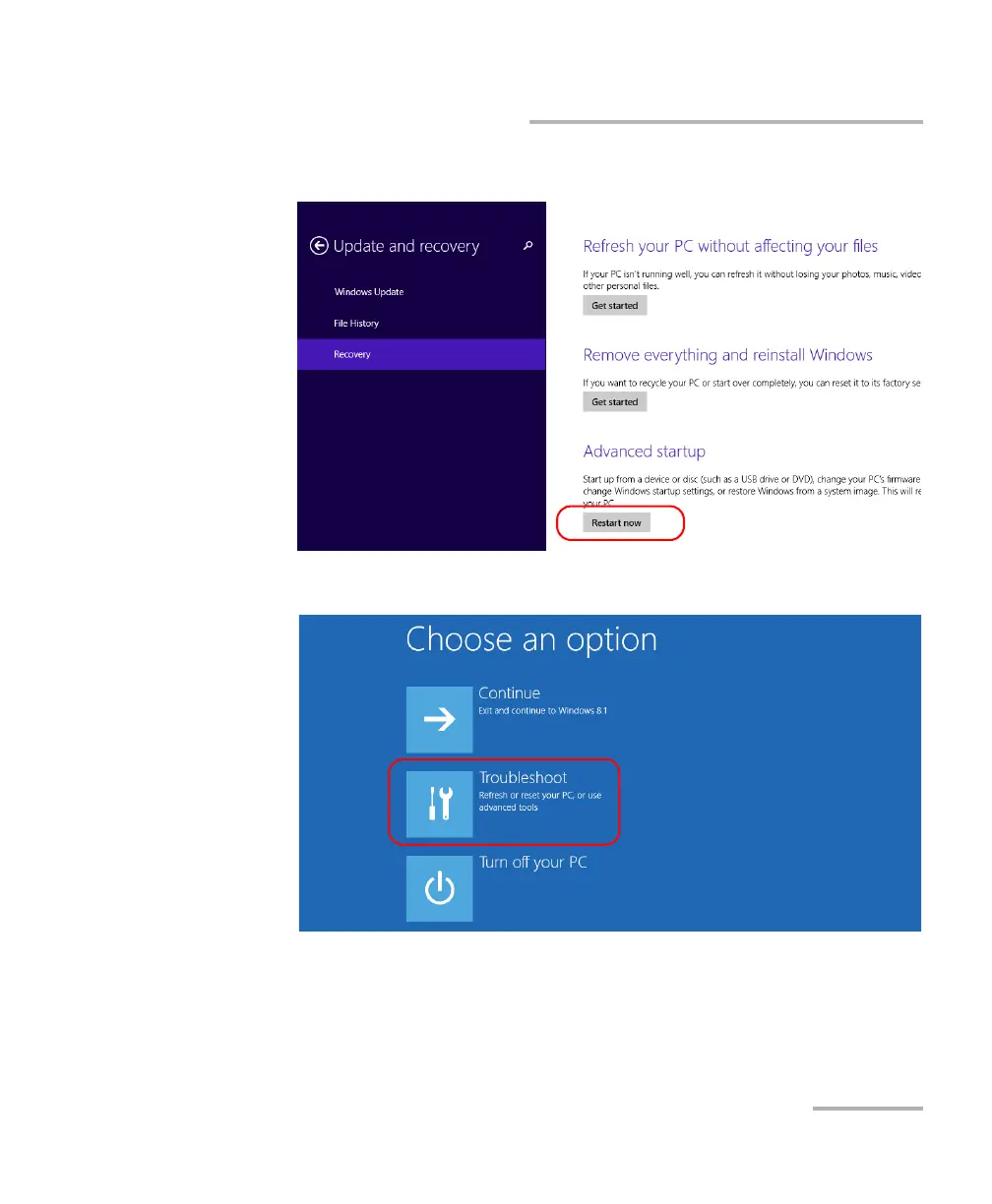

5. Under Advanced Startup, tap Restart now.

6. Under Choose an option, tap Troubleshoot.
