Troubleshooting

344 FTB-1v2 and FTB-1v2 Pro

Restoring Your Unit to Normal Operation

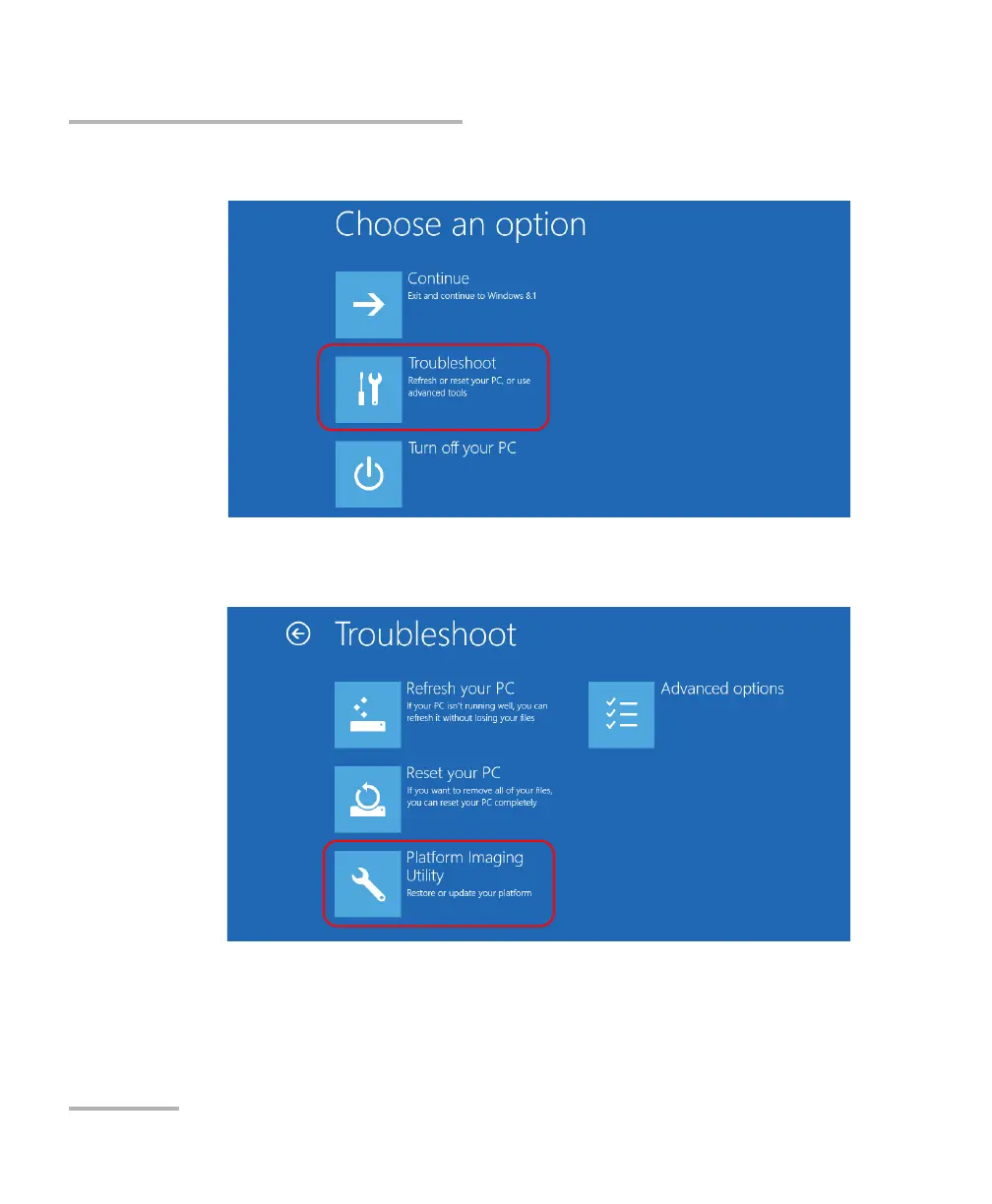

8b. Under Choose an option, tap Troubleshoot.

8c. Tap Platform Imaging Utility to display the corresponding

application.

8d. Connect the USB key with the desired WIM file to your unit.
