Troubleshooting

FTB-1v2 and FTB-1v2 Pro 345

Restoring Your Unit to Normal Operation

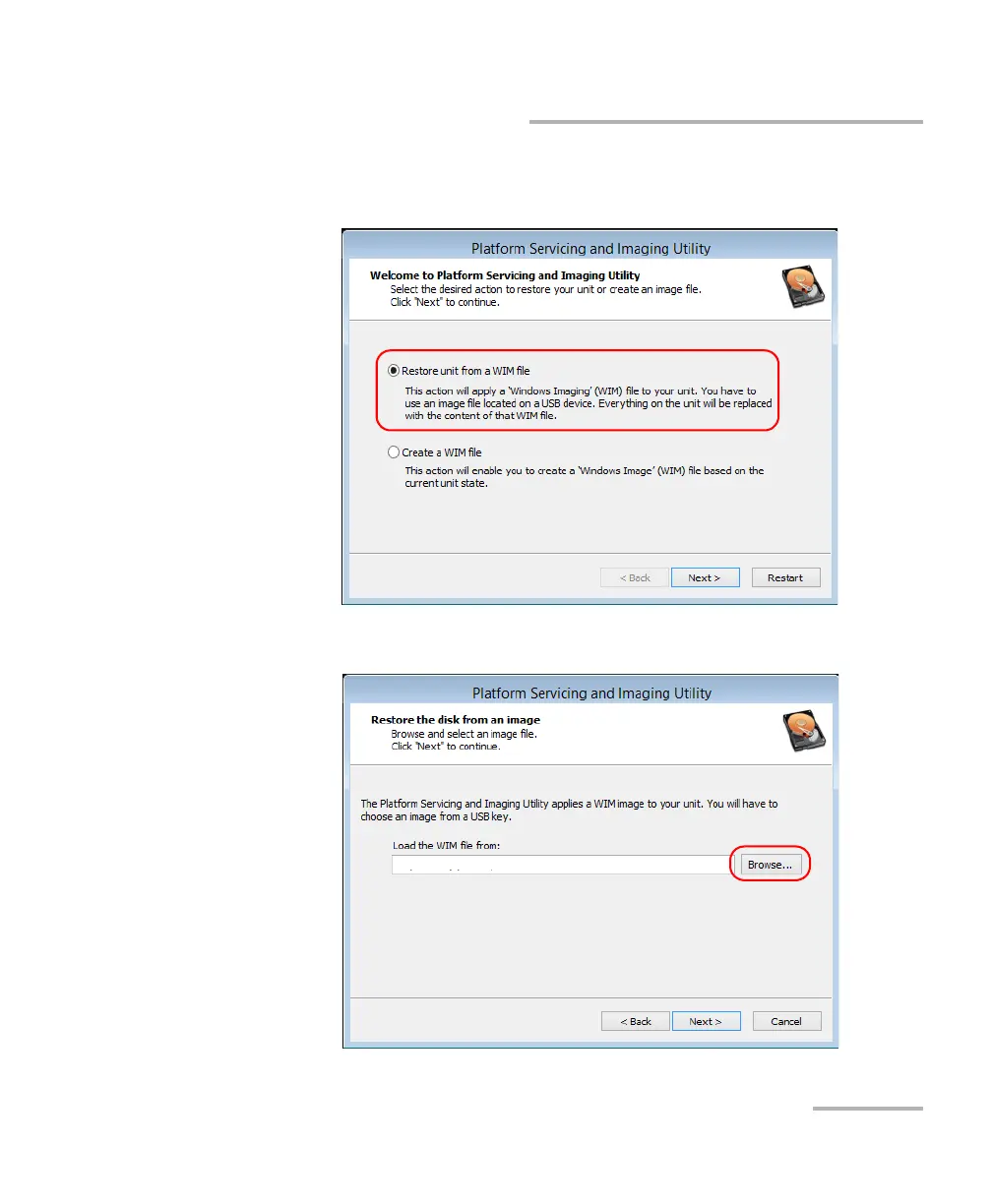

8e. From the Platform Servicing and Imaging Utility wizard, select

Restore unit from a WIM file, and then tap Next.

8f. Tap Browse.
