Troubleshooting

354 FTB-1v2 and FTB-1v2 Pro

Retrieving Network Interfaces Information

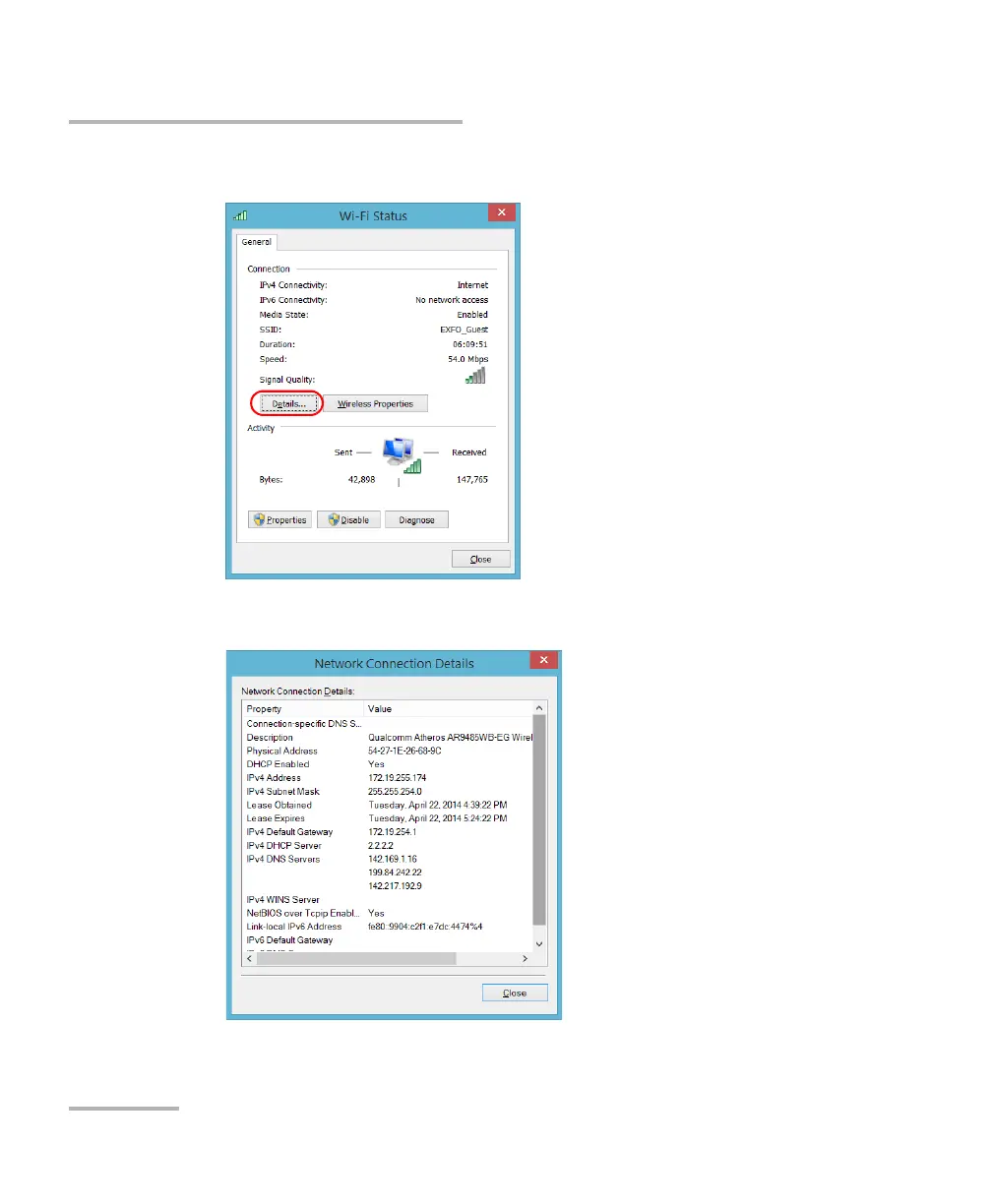

5. From the Wi-Fi Status window, tap Details.

6. When your work is done, close the window.

7. Close all other windows to return to Mini Toolbox X.
