Troubleshooting

FTB-1v2 and FTB-1v2 Pro 355

Retrieving Network Interfaces Information

Retrieving the Contact Information

All the information necessary to contact EXFO is available from your unit.

To retrieve the contact information:

1. In the lower right corner of the main window, tap .

2. Tap the About tab.

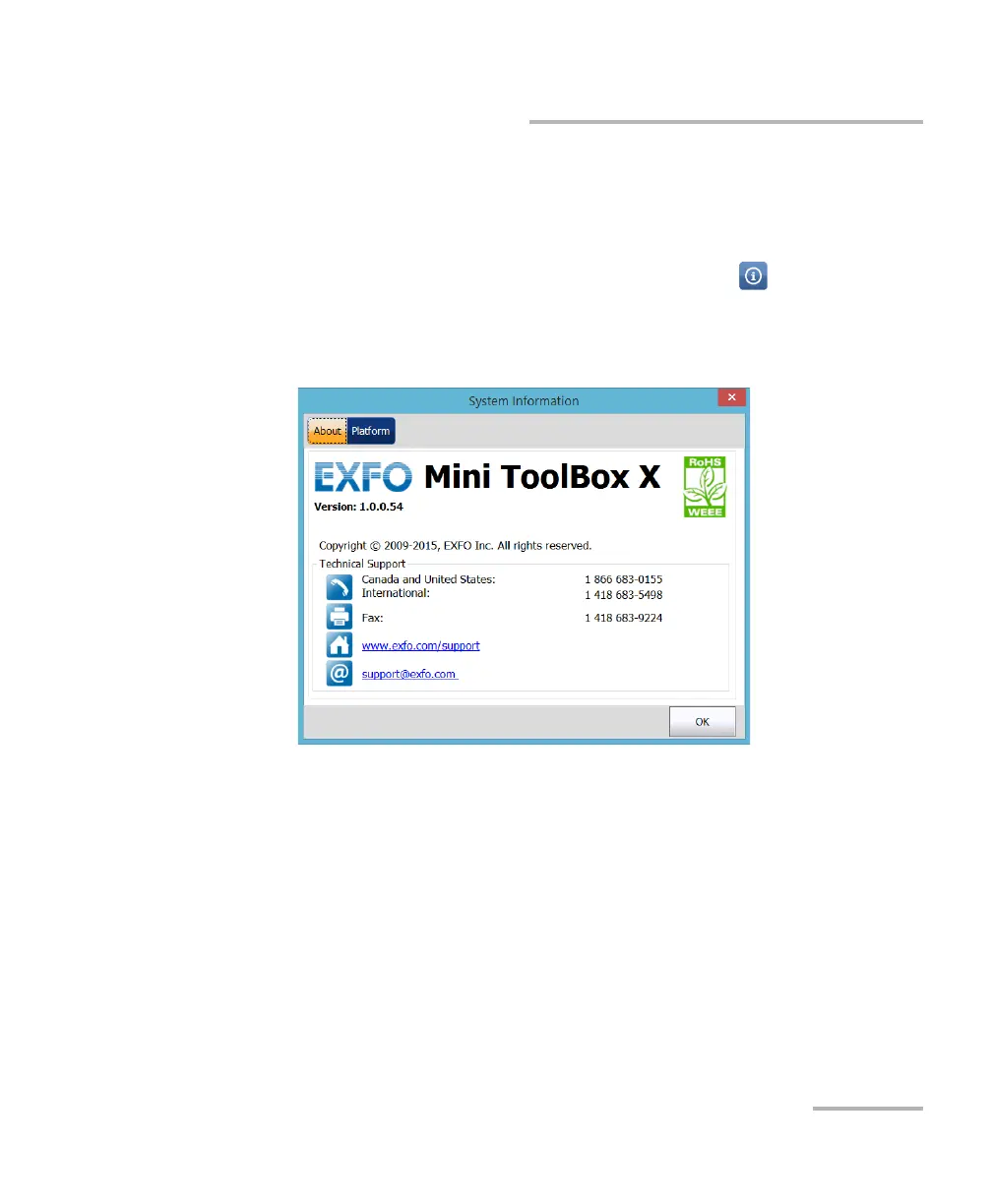

The contact information is displayed.
