Getting Started with Your Unit

68 FTB-1v2 and FTB-1v2 Pro

Inserting and Removing microSD Cards

To remove a microSD card from your unit:

1. Locate the microSD card slot on the top panel of your unit.

2. Pull the card out of the unit’s microSD card slot.

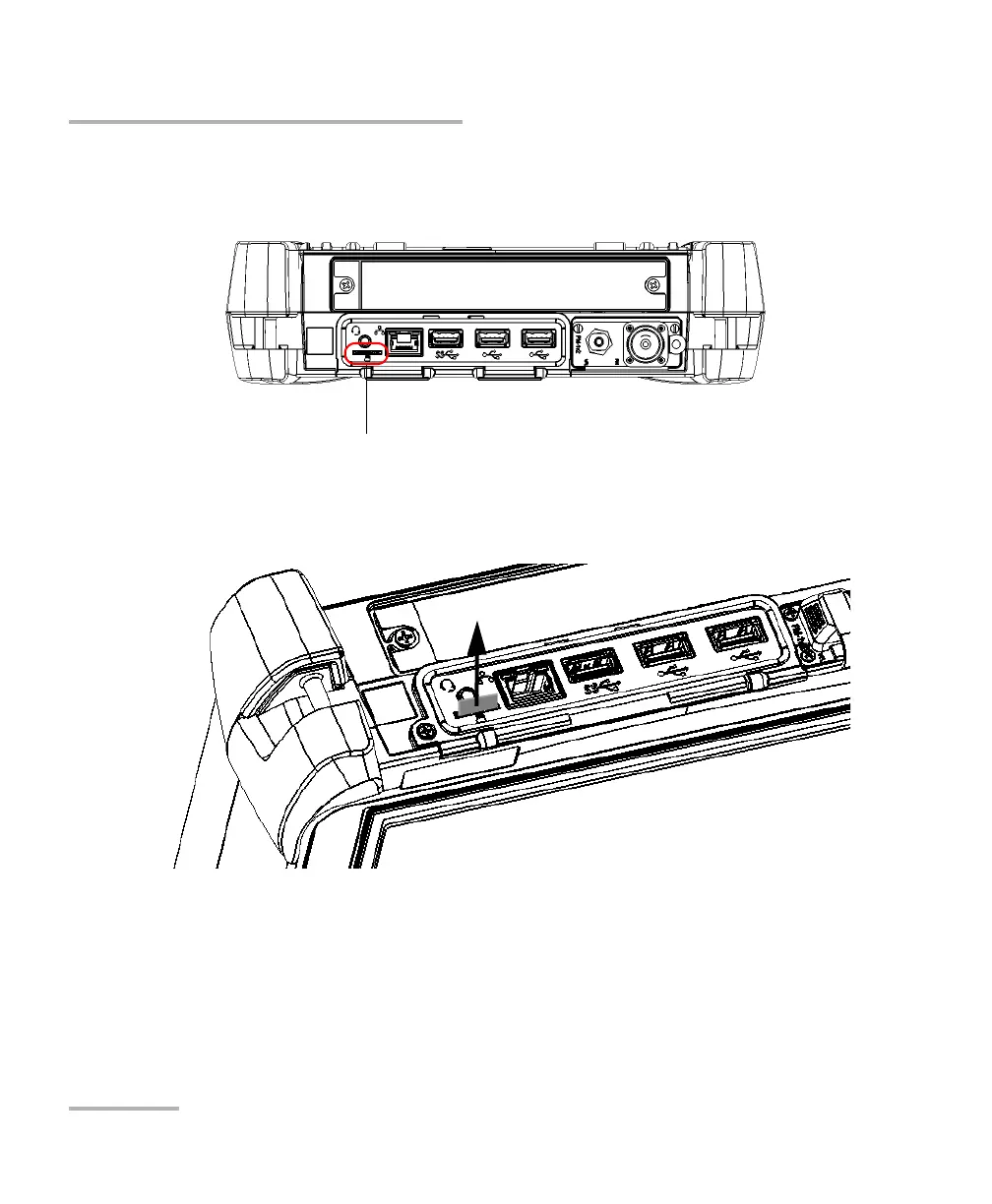

MicroSD card slot
