Setting Up Your FTB-1v2 and FTB-1v2 Pro

FTB-1v2 and FTB-1v2 Pro 73

Adjusting Speaker and Microphone Volume

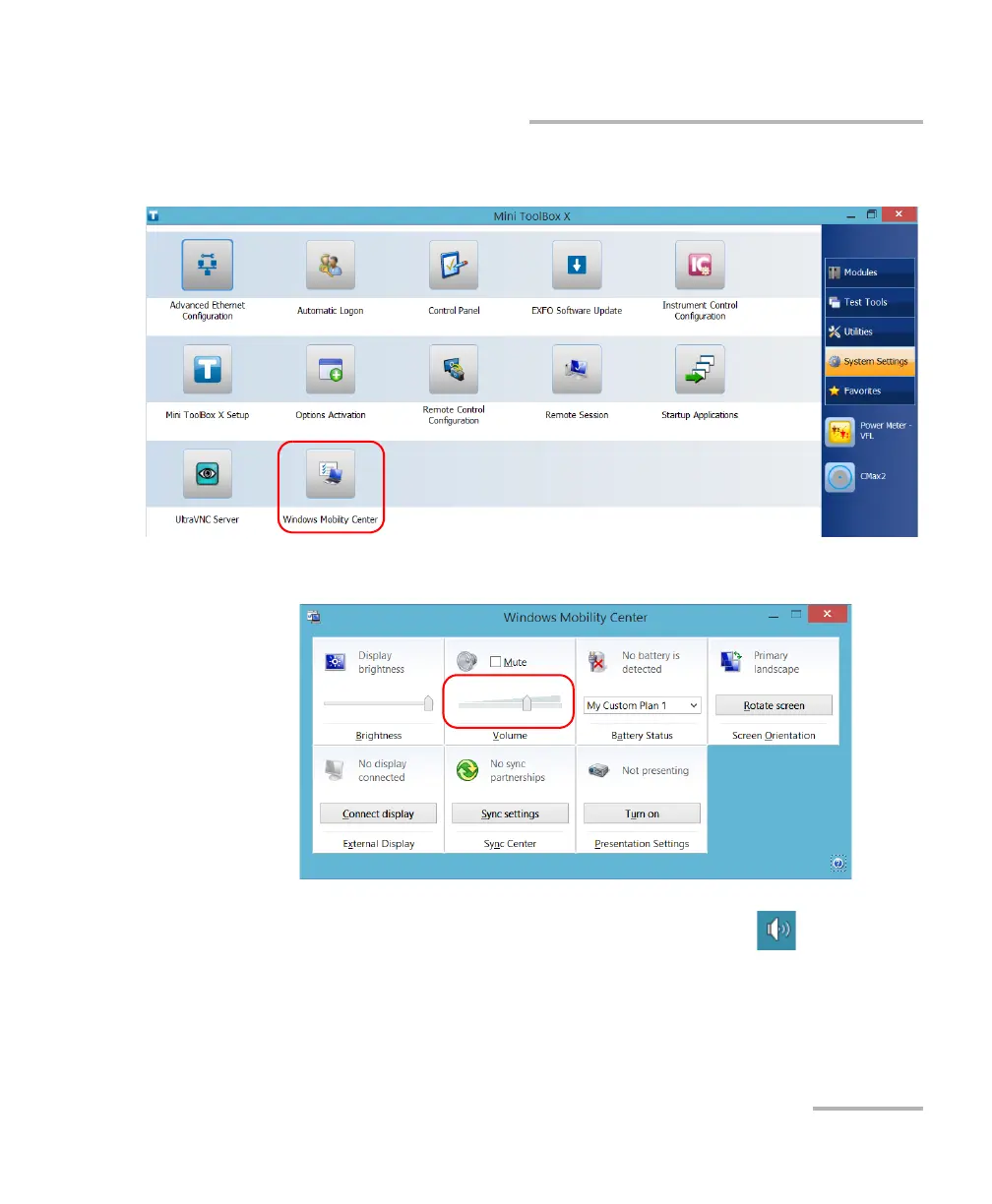

3. Tap Windows Mobility Center.

4. Move the Volume slider until the sound level is to your liking.

Note: You can also access the sound level slider by tapping the icon from the

taskbar.

The new value is taken into account immediately.
