Setting Up Your FTB-1v2 and FTB-1v2 Pro

76 FTB-1v2 and FTB-1v2 Pro

Adjusting Speaker and Microphone Volume

6. Select the Recording tab.

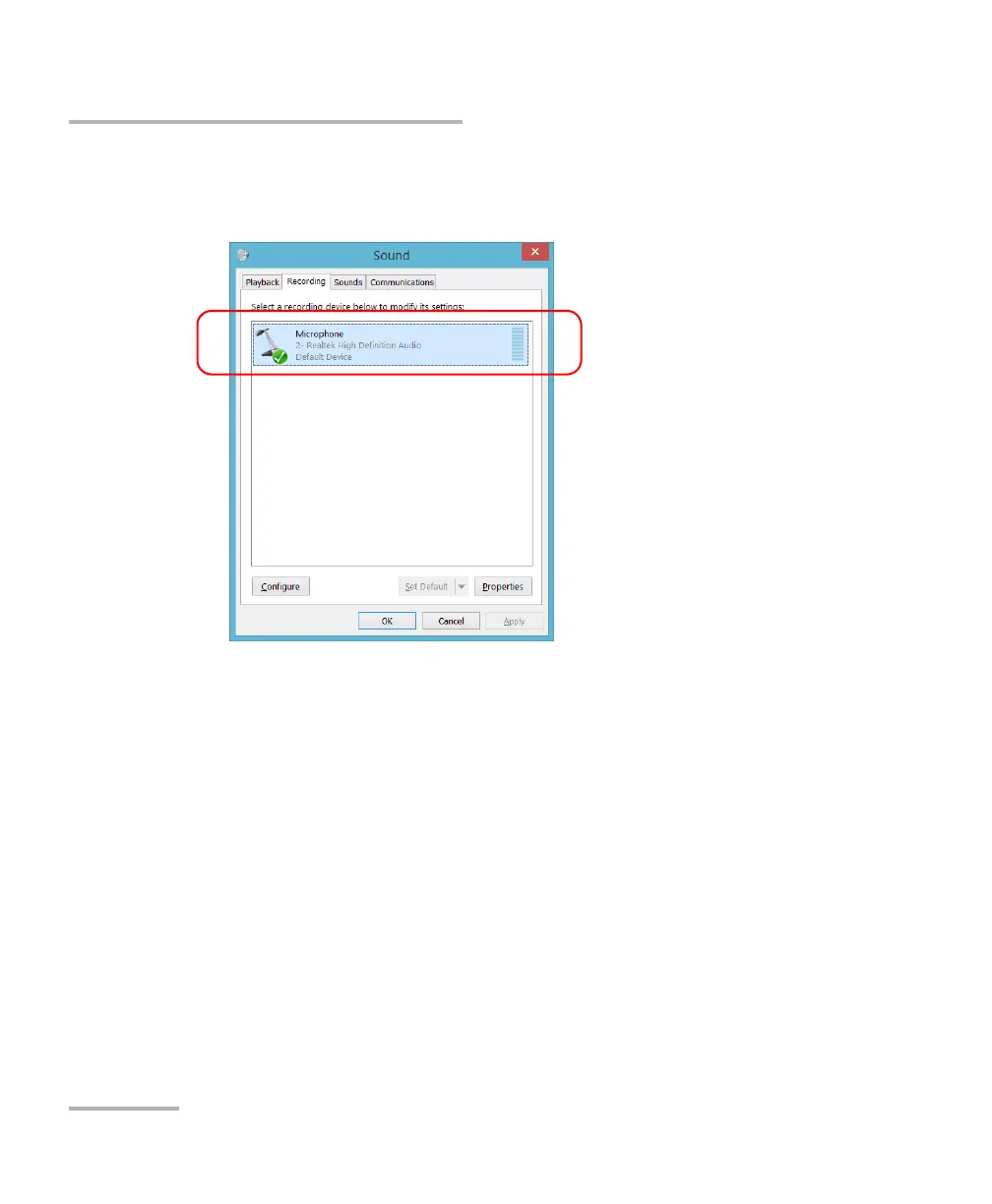

7. Ensure that your microphone is selected, and then tap Properties.
