Setting Up Your FTB-1v2 and FTB-1v2 Pro

FTB-1v2 and FTB-1v2 Pro 77

Adjusting Speaker and Microphone Volume

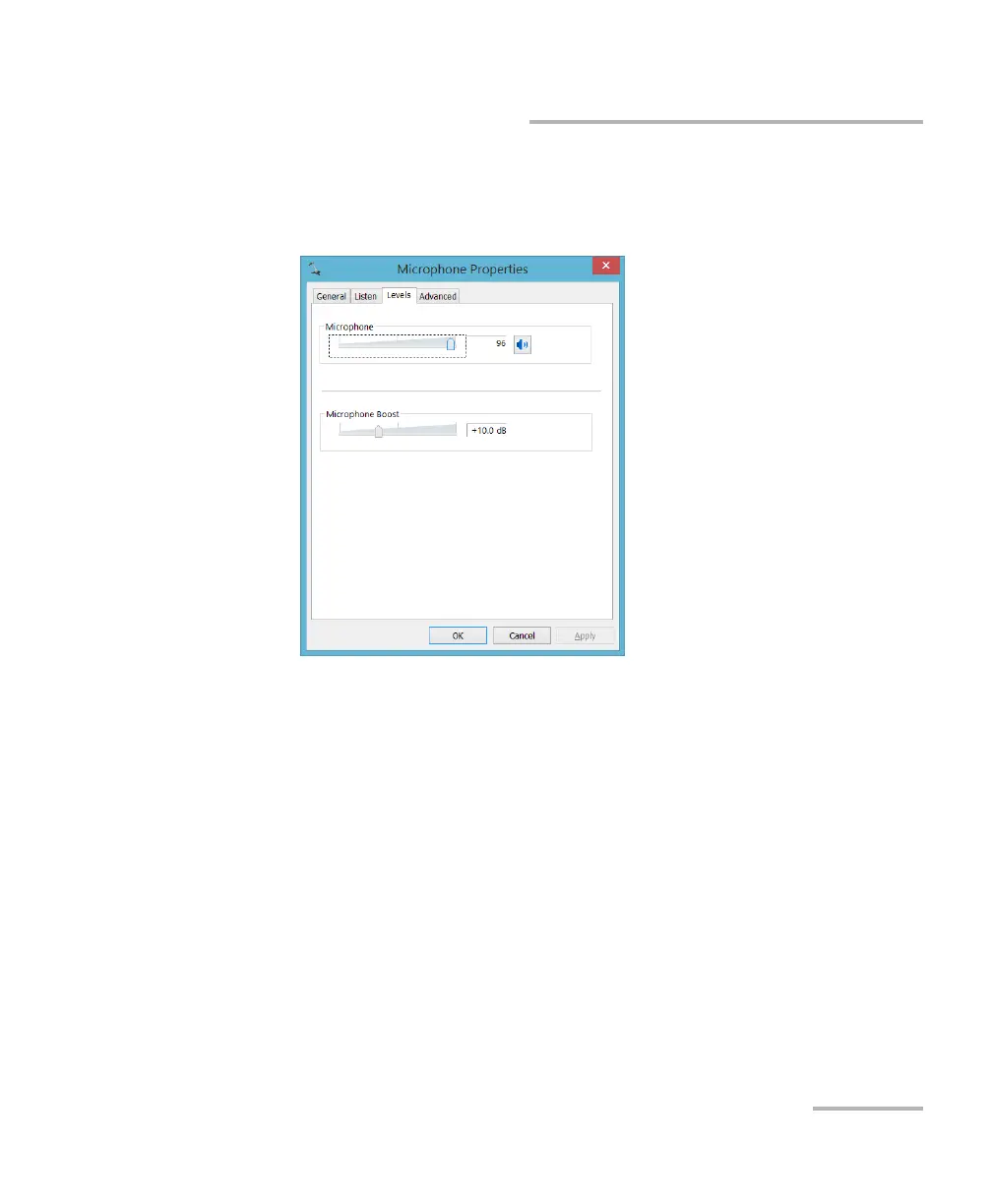

8. From the Levels tab, move the sliders until the settings are to your

liking. If the sound coming from your microphone is too low, you may

want to adjust the boost level as well.

9. Tap OK to confirm your new settings and close the window.

10. Tap OK to close the window and return to Control Panel.

The new value is taken into account immediately.
