IN1608 xi Scaling Presentation Switcher • Internal Web Pages 98
Signal Sampling panel
Signal sampling optimizes the input signal to the scaler for the currently selected input.

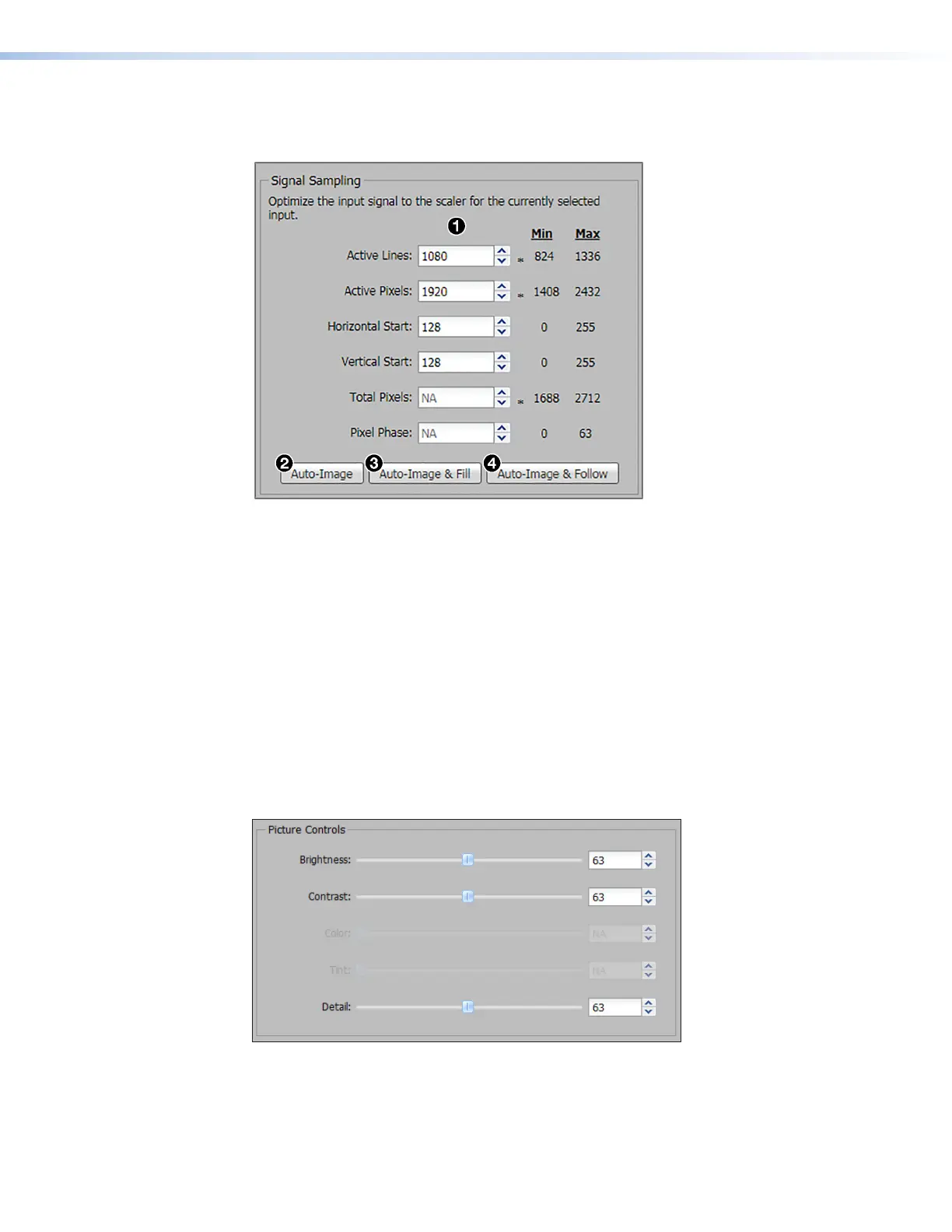

Figure 60. Signal Sampling Panel
To manually adjust signal sampling settings, enter a value within the Min and Max values
displayed to the right of each adjustable setting (see figure 60,
1
) or click the Up or Down
arrows. An asterisk beside a chosen value for a signal sampling setting indicates that it is a
default value for the applied video signal (for example, see Active Lines in figure 60).
To automatically adjust these settings, perform one of the following:
• Click the Auto-Image button (
2
) to perform a one-time Auto-Image.
• Click the Auto-Image & Fill button (
3
) to perform a one-time Auto-Image and fill the
entire video output (ignores aspect ratio setting).
• Click the Auto-Image & Follow button (
4
) to perform a one-time Auto-Image and to
maintain the aspect ratio of the input signal (ignores aspect ratio setting).
Picture Controls panel
The Picture Controls panel shows adjustable image settings for the selected input.
Figure 61. Picture Controls Panel
To adjust the picture settings, click and drag the associated slider for any available image
setting (brightness, contrast, color, tint, or detail) to the desired value.
Alternatively, enter a value within the field associated with the image setting, or click the Up
and Down arrows to change the value in the field.
