Translation of the original instructions
ENGLISH

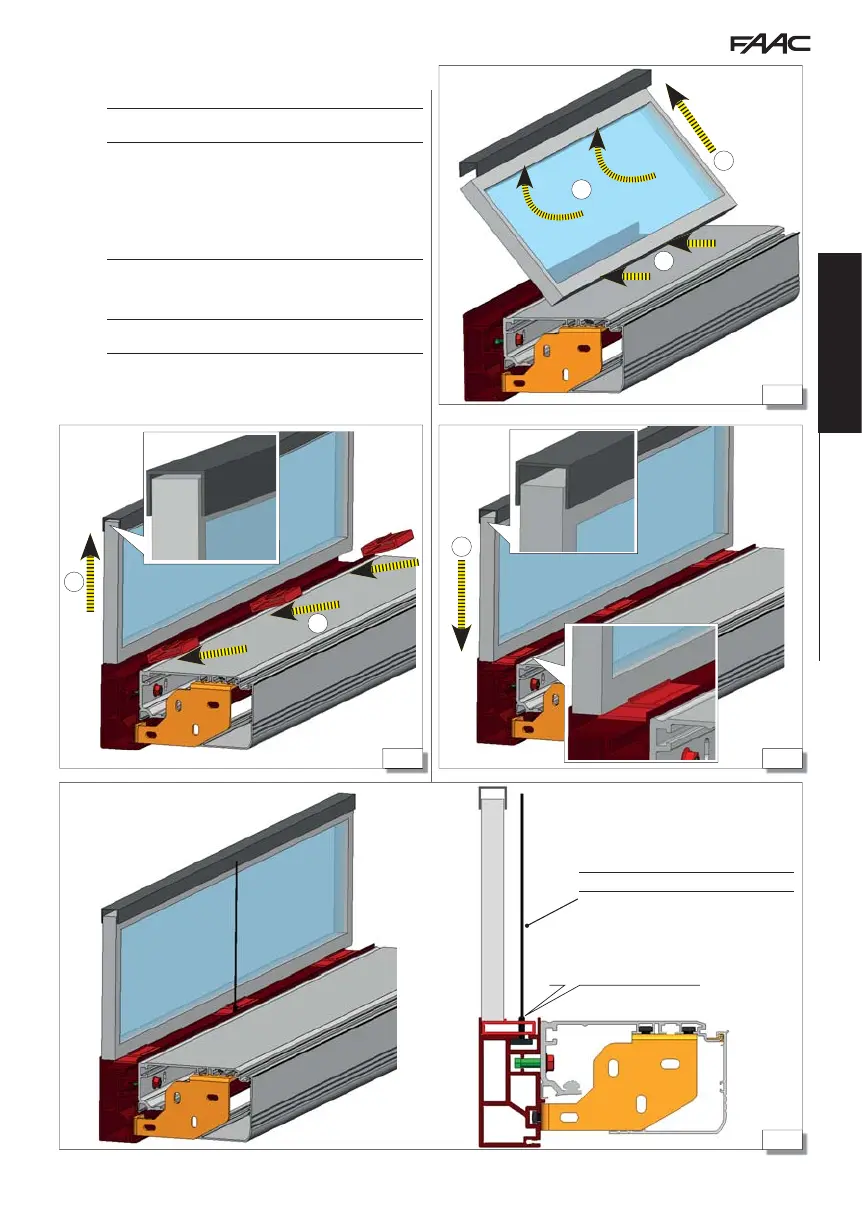

8.4 MOUNT THE TRANSOM
OPTIONAL)

The optional transom is provided in the event of self-supporting head
section.
1. Insert the transom panel into the slot on the self-supporting
profile 32.
2. Keep the panel raised in order to insert the profiles at a regular
distance 33.
3. Lower the panel onto the profiles 34.
4. Install a tie rod (not provided) in the centre 35.
!
Use steel tie rods suitable for supporting a 600 kg load (the contact
surface of the cable with the self-supporting profile must be at least 70
mm
2
)* 31.

The number of tie rods required depends on the length of the profile:
install one tie rod every 2500 mm.
* minimum 70 mm
2

Tie rod not supplied.
