Translation of the original instructions
ENGLISH
10.1 INSTALLING WHEELS ON THE
A1400 AIR DM
RISKS
PERSONAL PROTECTIVE EQUIPMENT
REQUIRED TOOLS

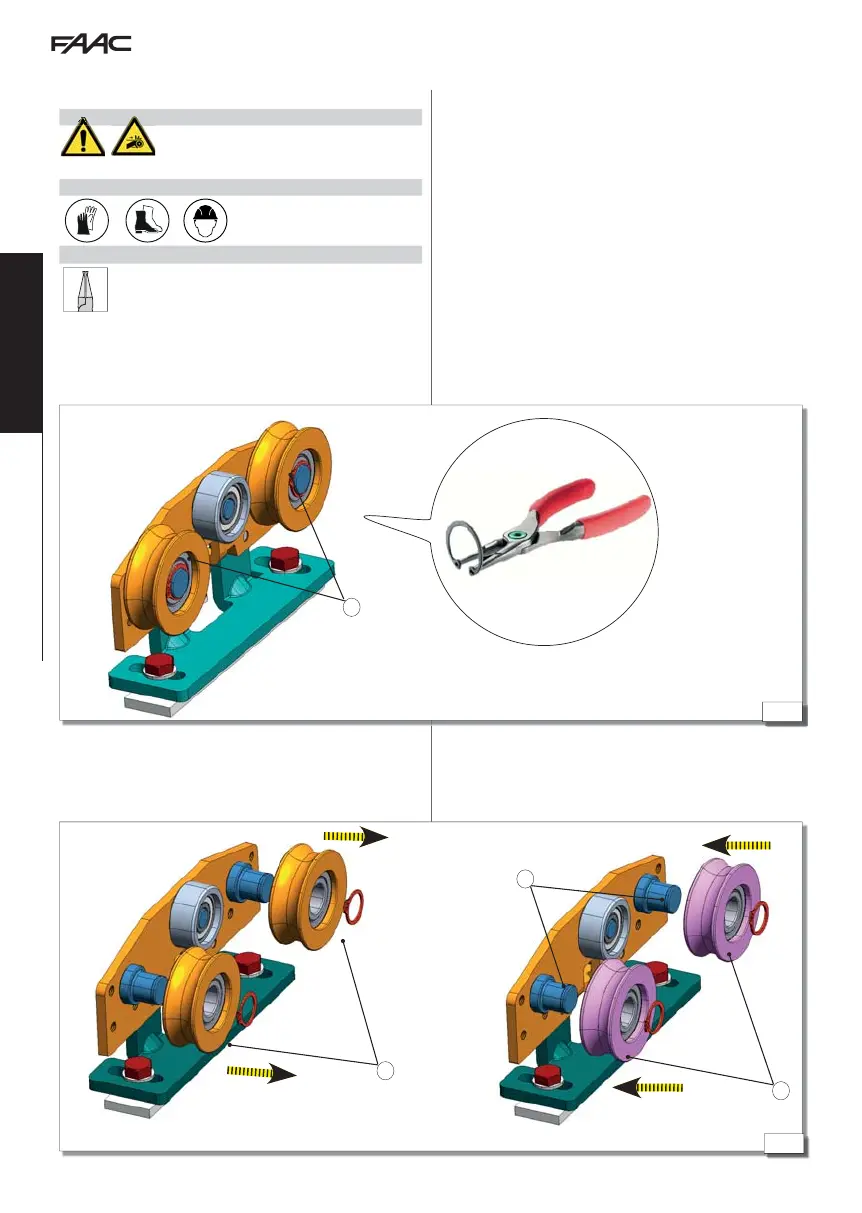

8 Wheels are provided in the A1400 AIR DM kit for use with heavy
leaves, to be installed on the carriages in place of the standard wheels .
To remove the wheels proceed as follows:
1. Release and remove the circlips from the wheels, using circlip
pliers 51-

.
2. Remove the wheels from the carriages 52-

.
3. Install the wheels for the A1400 AIR DM provided in the kit
52-

.
4. Using the circlip pliers, replace the circlips in the grooves of the
wheel pins in order to secure the wheels 52-

.
