Scanner Mount Dimensions

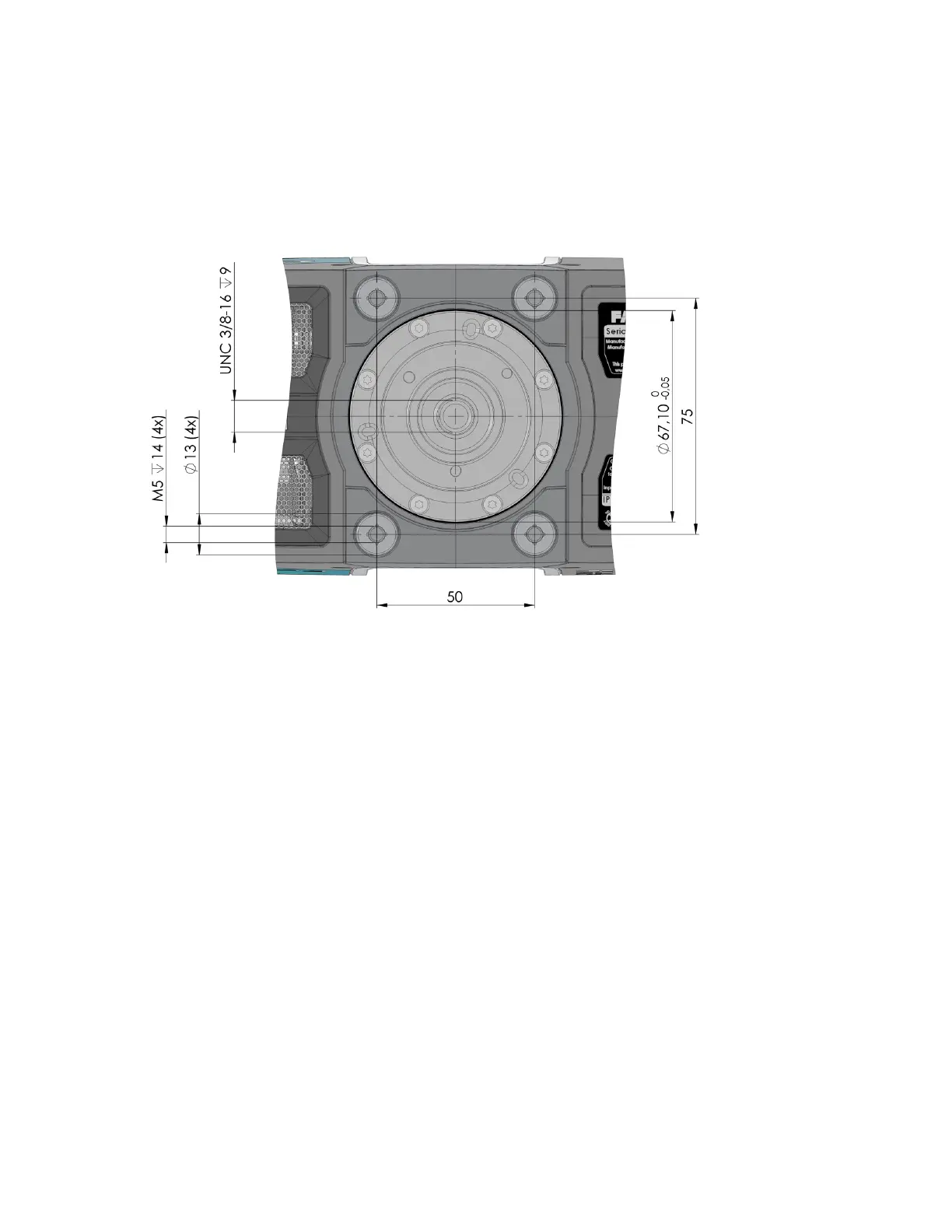

Figure 9-2 Scanner mount
The 3/8 inch central thread can be used to mount a fixation device below the scanner.
The scanner has 4 M5 tapped holes as interface for helical operation.
All dimensions are in mm.
FARO
®
Focus Premium Laser Scanner User Manual
Chapter 9: Technical Data
FARO Focus Premium (March 2022) Page136of157
