1.6.5 N etwork interface of the CPX-M-FB35

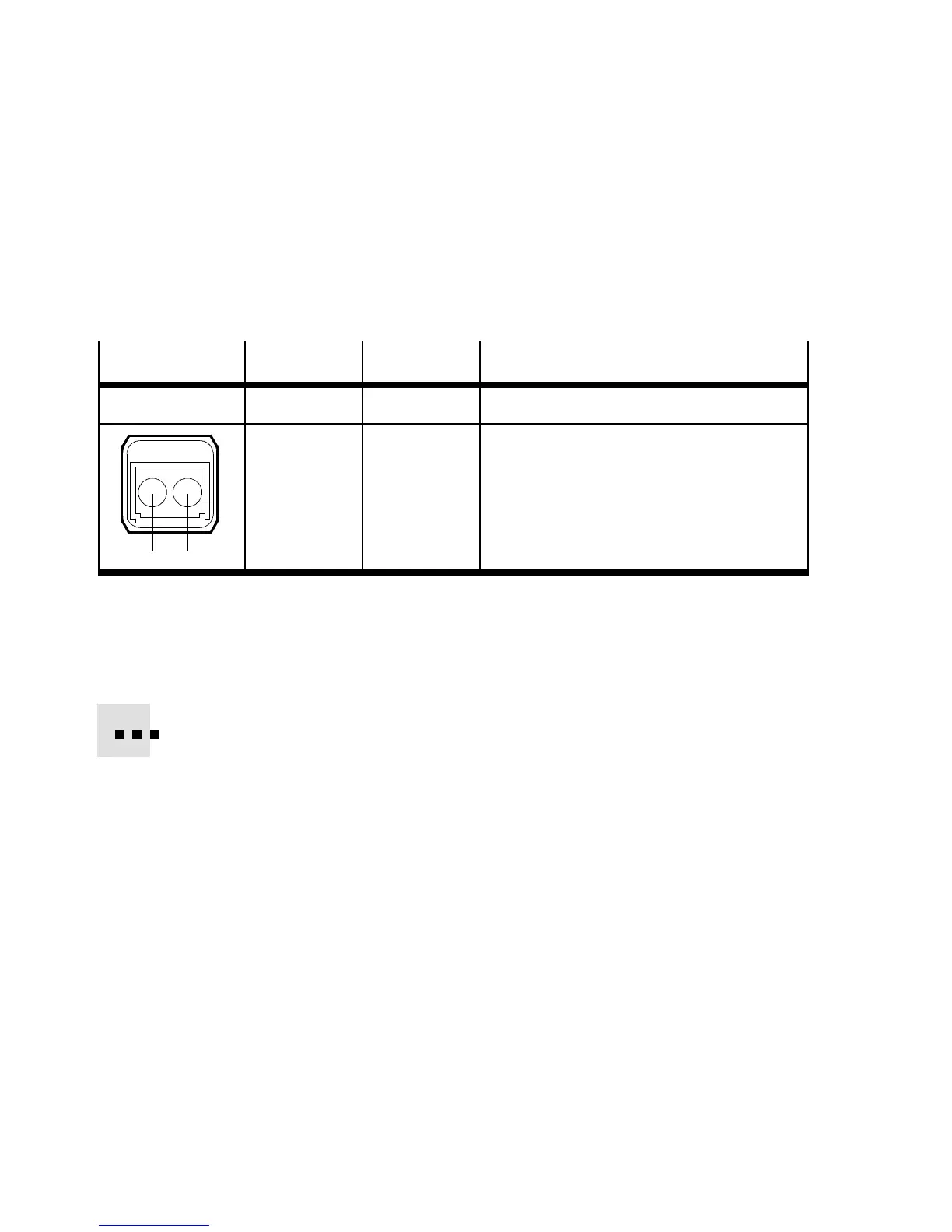

There are two SCRJ push-pull sockets (AI DA-compliant) on the
CPX-M-FB35 for the network co nnection:
Socket
Connection Signal Explanation
SCRJ, push -pull
21
1
2
TX
RX
Transmitted data
Received data
Tab. 1/9: Pin allo cation of the network interfaces of the CPX-M-FB35 (SCRJ)
Connection with plug from Festo
Connect the CPX terminal to the network with a F esto plug,
FBS-SCRJ-PP-GS. The plug is designed for POF fibre-optic
cable with cable diameter of 6.5 ... 9.5 mm.
To achieve the required degree of protection, e.g. IP65/IP67:
– Use Festo plugs.
– Seal unused co nn ections (see secti o n 1.7).
