Festo CPX-FB33 - Parameterisation with Siemens STEP 7

2. Commissioning
2-52
Festo P.BE-CPX-PNIO-E N en 1407c English
2.8.2 Parameterisation of the CPX terminal with Siemens STEP 7
Setting system parameters
1. S tart the PROFINET hardware configuration in your config-
uratio n and programming software (e.g. HW Config in
Siemens STEP 7).
1
23 4

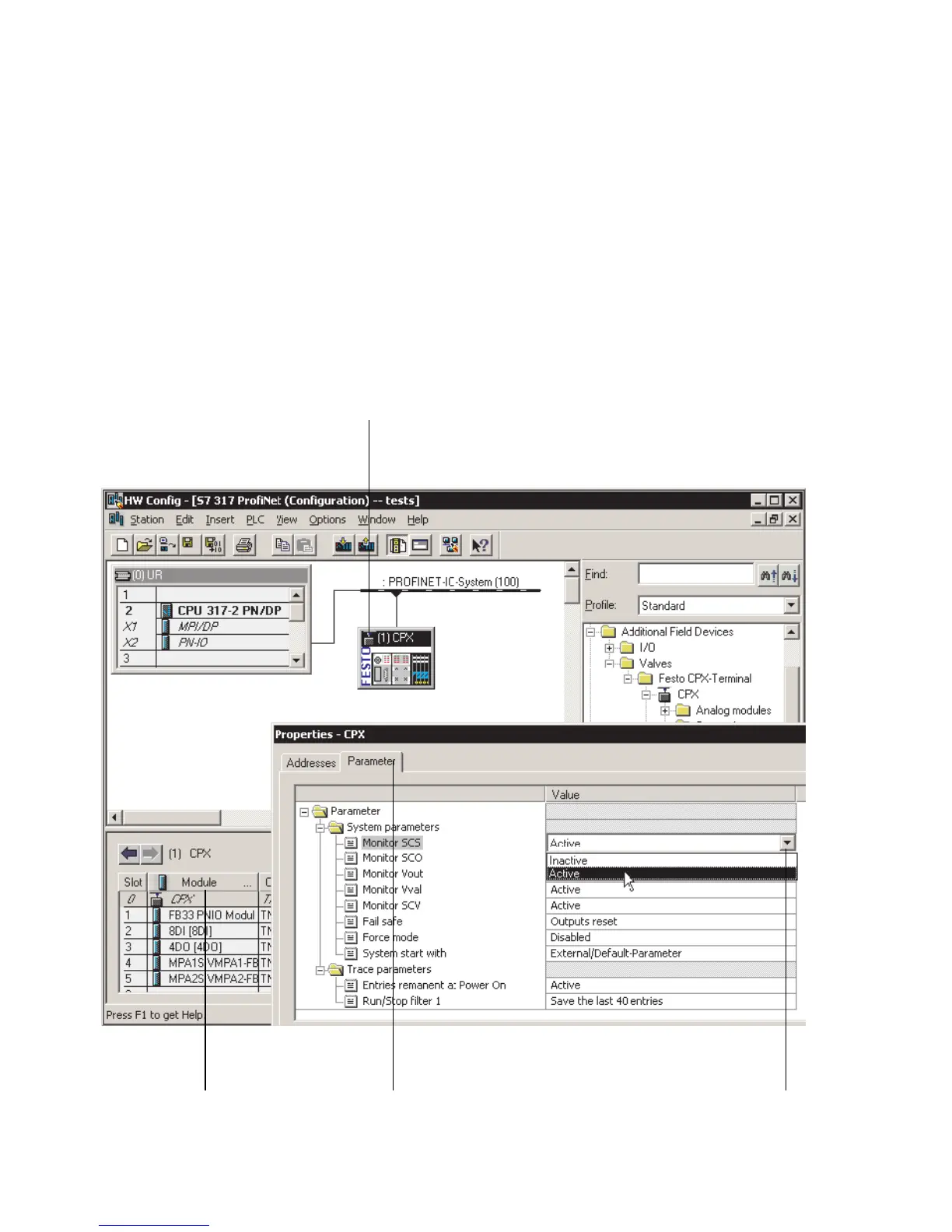

Fig. 2/14: Setti ng system parameters with Siemens STEP 7
