Notes regarding this description
This description contains information
about the following modules:
Bus node
Type code Brief description Connection technology
CPX-FB33 Bus node for PROFINET IO
The PROFINET fieldbus tech-
nology uses the Ethernet
standard and TCP/IP protocol
for real-time commun ication in
an industrial environment.
Data transmission:
–PROFINET,onthebasis
of Industrial Ethernet,
based on the Ethernet pro-
tocol (IE EE 802.3), real-
time-capable
– Switched Fast Ethernet,
100 Mbit/s.
Selection of directives, stand-
ards and norms regarding
PROFINET:
– PROFINET installation
guidelines
– I EC 61158
– I EC 61784
– I EC 61918.
Additional information:
 www.profinet.com
2xM12socket,
D-coded, 4-pin,
corresponding to I EC 61076-2
CPX-M-FB34 2 x RJ45 socket, push-pull,
AIDA-compliant,
corresponding to I EC 60603,
I EC 61076-3
CPX-M-FB35 2 x SCRJ socket, push-pull,
650 nm wavelength, suitable
for POF fibre-optic cable,
AIDA-compliant,
corresp on di n g to IEC 61754-24

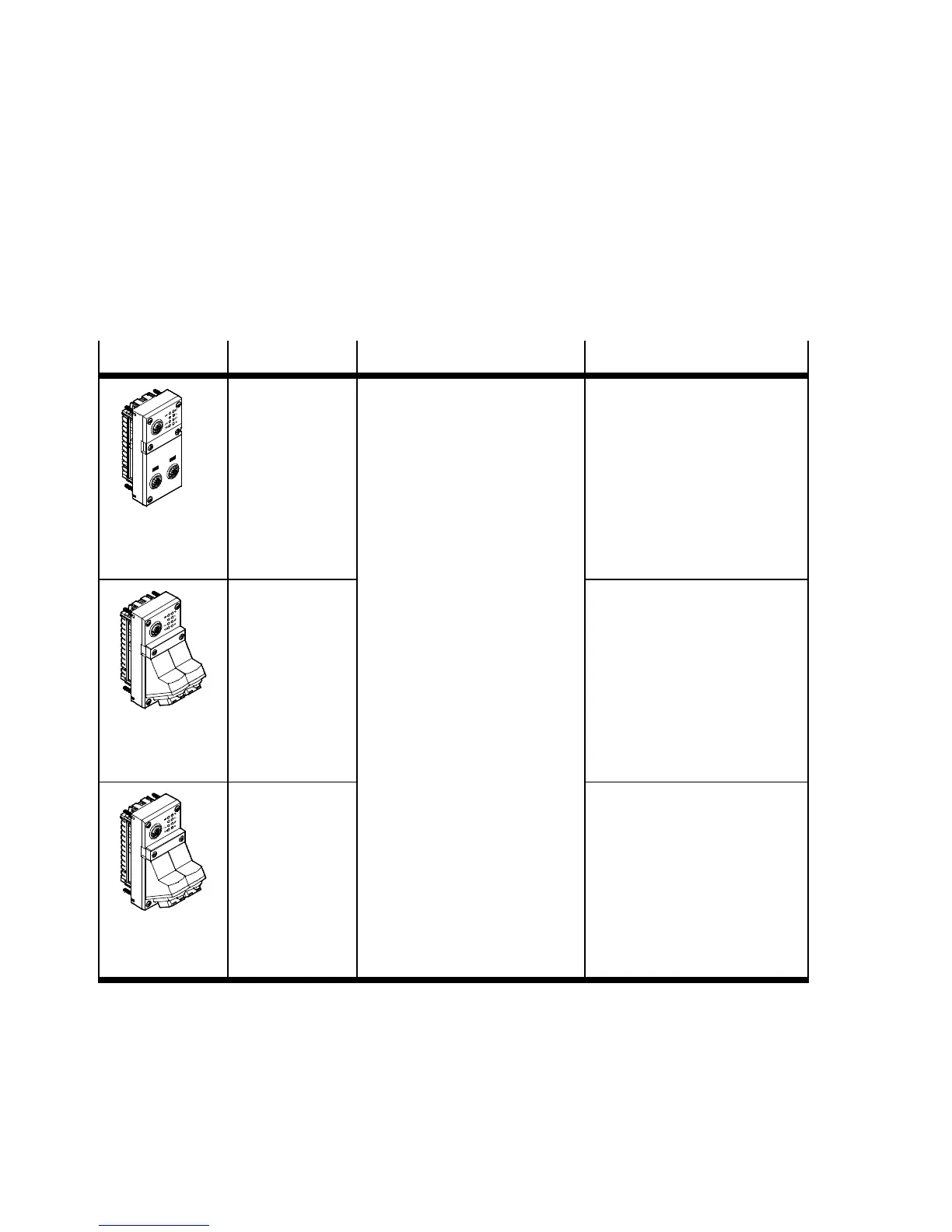

Tab. 0/1: Bus node for PR O FINET – o verview
