FISNAR I&J7300 - Page 48

I&J7000 Series Operating Manual
Section 6: Point Type & Function Details
Part # 561978B
Rev. H May 04
- Page 48 -
© 2003 I&J Fisnar Inc.
Address
Instruction
1
Dispense End Setup:
H.Speed = 100 mm/s, L.Speed = 15 mm/s, L.Length = 5mm
2
Z Clearance:
Relative 10 mm
3
Point Dispense Setup:
Dis.Time = 0.25 s Tail Time = 0.10 s
4
Dispense Point
5
Dispense Point
6
Dispense Point
7
Dispense Point
8
End Program

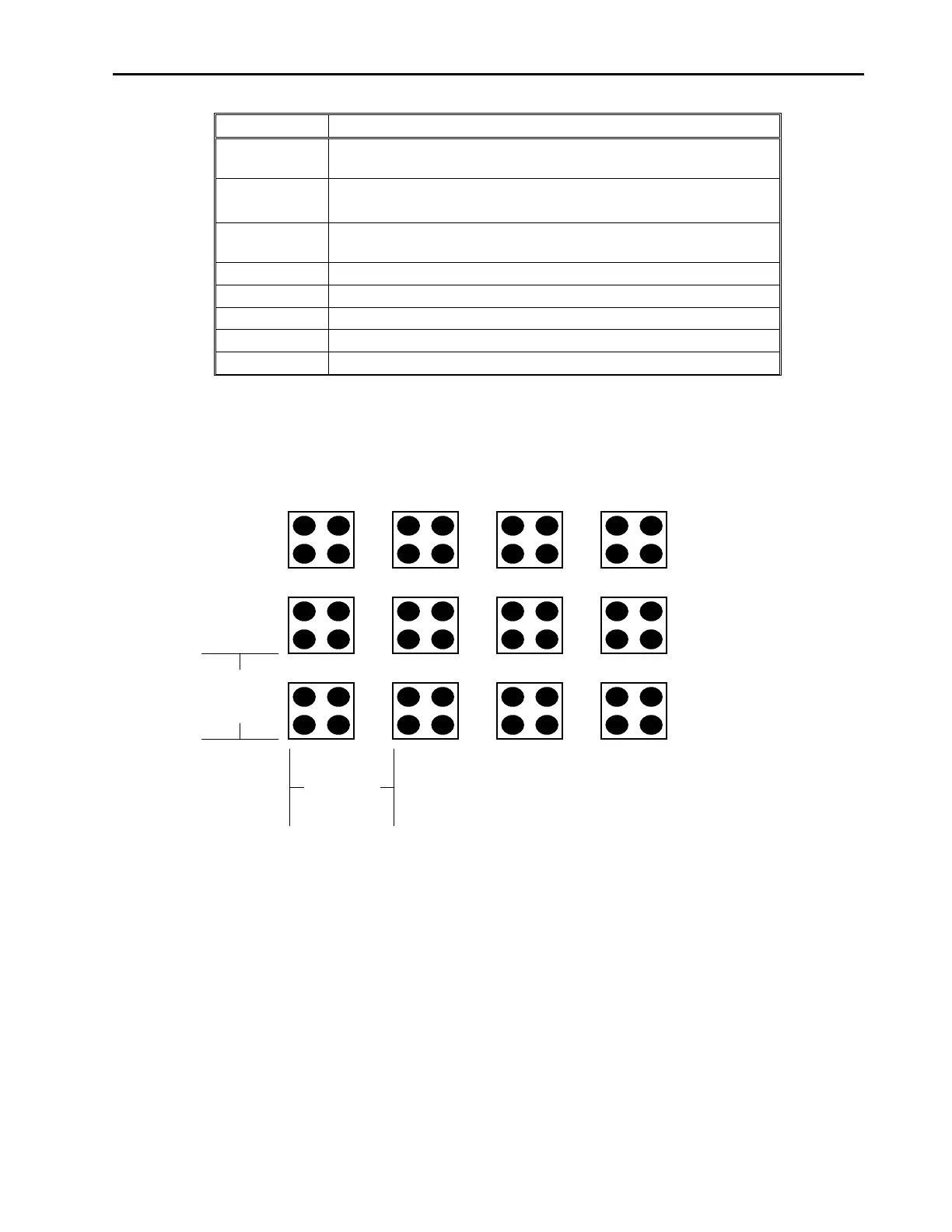

If a fixture is made which holds (12) work pieces, in four columns by three rows:
A Step & Repeat X instruction can be used to repeat the program at the additional (11)
locations.
The instruction at memory address 8 should be changed from End Program to Step &
Repeat X. To register a Step & Repeat X instruction at memory address 8, do the
following:
Y Offset
25 mm
X Offset
30 mm
