Instruction
Display Shows
8
The display will prompt you to select 1. S Path or
2. N. Path. Selecting S PATH will cause
row 1 columns 1 to 4 to be dispensed, then
row 2 column 4 to 1, then
row 3 column 1 to 4.
Selecting N PATH will cause
row 1 columns 1 to 4 to be dispensed, then
row 2 columns 1 to 4, then
row 3 columns 1 to 4.
Press 1 to select S PATH.
9
The program is now complete. Press ENTER,
then select End Program to mark address 9 as
the new End Program instruction. Press RUN to
run the program.

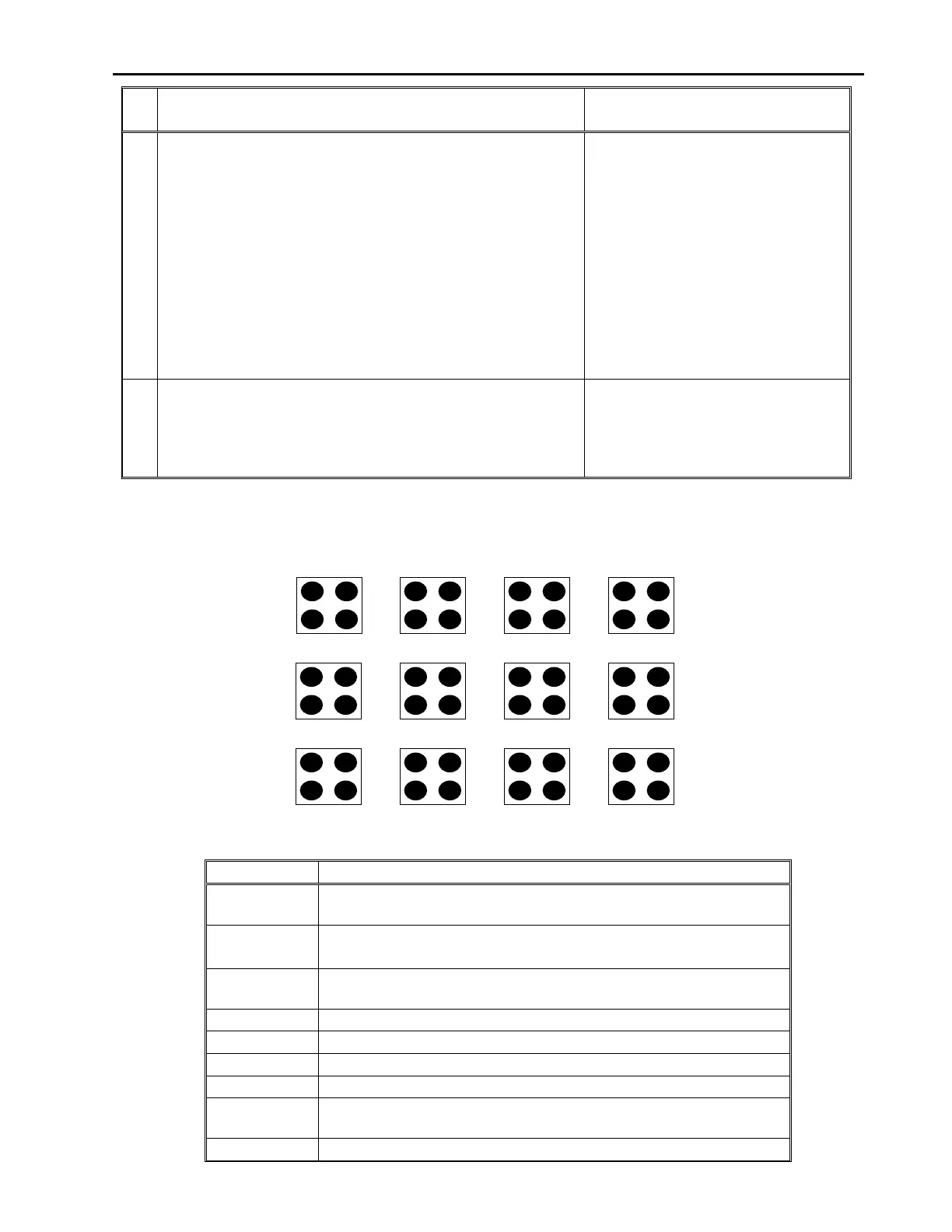

The program will run in the following pattern and consists of the following instructions:
Address
Instruction
1
Dispense End Setup:
H.Speed = 100 mm/s, L.Speed = 15 mm/s, L.Length = 5mm
2
Z Clearance:
Relative 10 mm
3
Point Dispense Setup:
Dis.Time = 0.25 s Tail Time = 0.10 s
4
Dispense Point
5
Dispense Point
6
Dispense Point
7
Dispense Point
8
Step & Repeat X:
Cols: 4, Rows: 3, X Off: 30mm, Y Off: 25mm, Addr 4, S Path
9
End Program
1
2
3
4
8
7
6
5
9
10
11
12
