7. Pour concrete into the recesses in the concrete foundation for the foundation blocks.
8. After the concrete has set, tighten the fastening bolts of the foundation blocks with the
specified tightening torque (Page 77).
9. Record the alignment dimensions and keep the report in a safe place together with these
operating instructions.
NOTICE
Damage caused by unevenly tightening the fastening bolts
The gear unit can be damaged by unevenly tightening the fastening bolts.
Evenly tighten the fastening bolts. Ensure that the gear unit is not deformed or distorted when
tightening the fastening bolts.
Mounting on a concrete foundation using anchor bolts
Requirements
The lower side of the gear unit mounting feet must be clean.
Inserting the anchor bolt

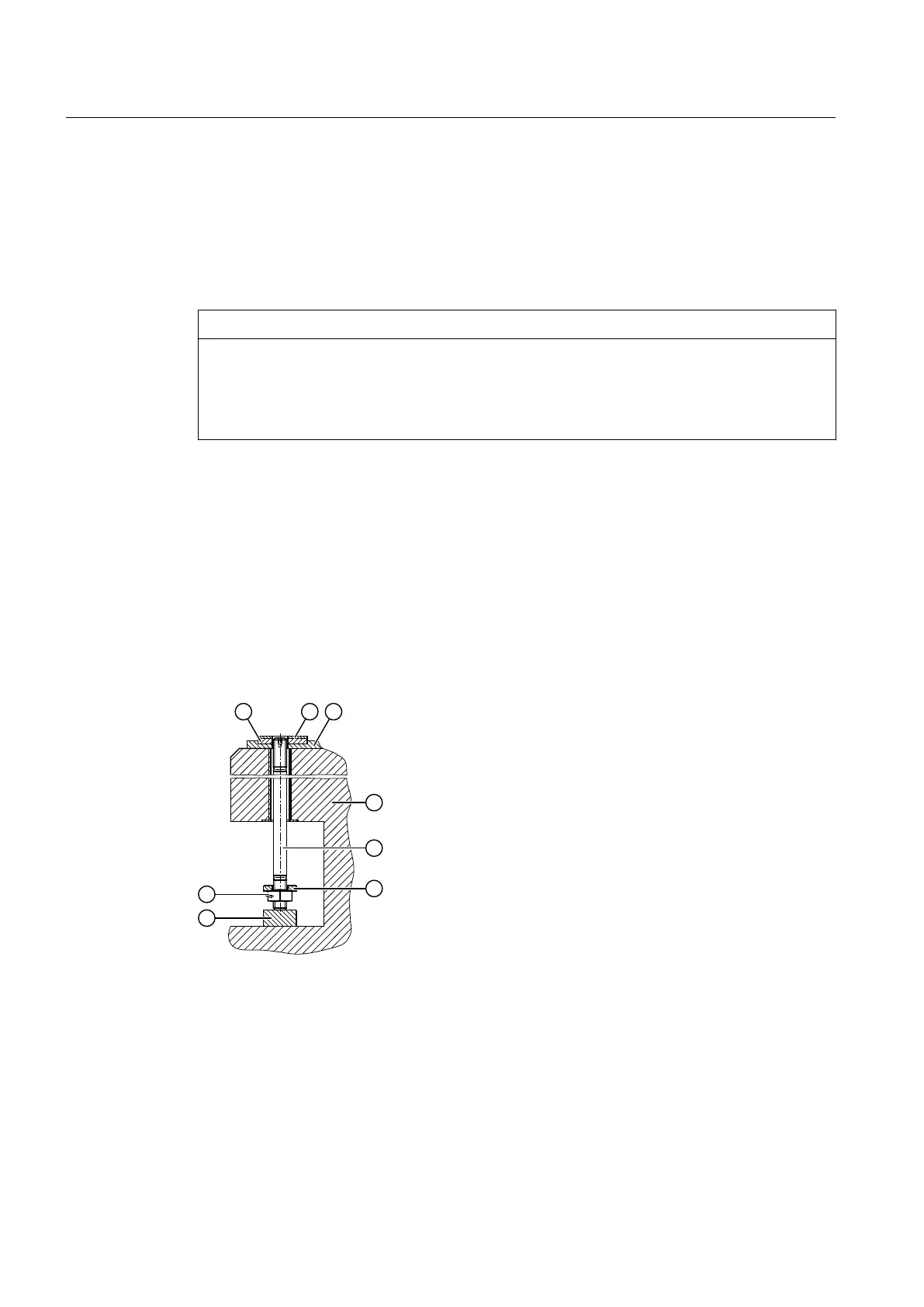

The following diagram shows the inserted anchor bolt:
① Baseplate ⑤ Anchor bolt
② Support ⑥ Pressure plate
③ Fine-grout concrete ⑦ Wood
④ Raw foundation ⑧ Hexagon nut
Figure 5-4 Inserted anchor bolt
Proceed as follows to insert the anchor bolt:
1. Place the support on the baseplate embedded in the fine-grout concrete.
2. Insert the anchor bolt.
Mounting
5.3 Gear unit mounting
REDUREX Gear unit 5200en
60 Operating Instructions 03/2019
