6270A

Service Manual

38

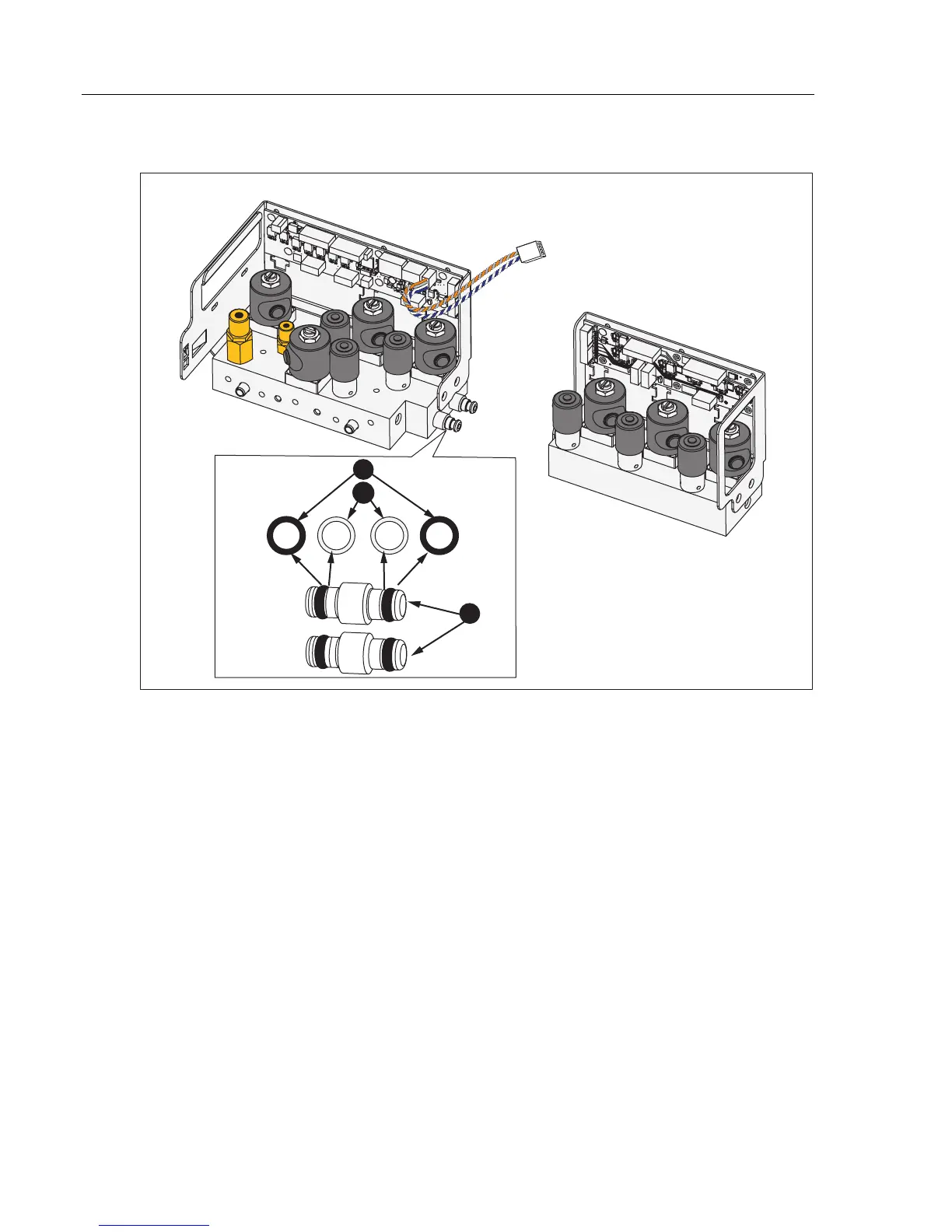

14. Remove and inspect the manifold connectors , O-rings , and backup

rings  as shown in Figure 19.

11

13

12

hxn220.eps

Figure 19. Dock Assembly Components
