Maintenance
TROUBLESHOOTING
INPUT: +1V
VERT:
O.5V/DIV
HORIZ:
2
ms/DlV
RANGE:
2v
7
INPUT: OV
VERT.
5 mV/DIV
OV HORIZ:
2
ms/DIV
RANGE:
200 mV
ALL
ov
WAVEFORMS FOR
INPUT: -lV
VERT:
0.5V/DIV
HORIZ:
2
ms/DIV
RANGE:
2v
INPUT:
+I00 m\l
VERT:
0.5V/DIV
HORIZ:
2
ms/DIW
RANGE:
200 rnV
SLOW READING RATE.
-

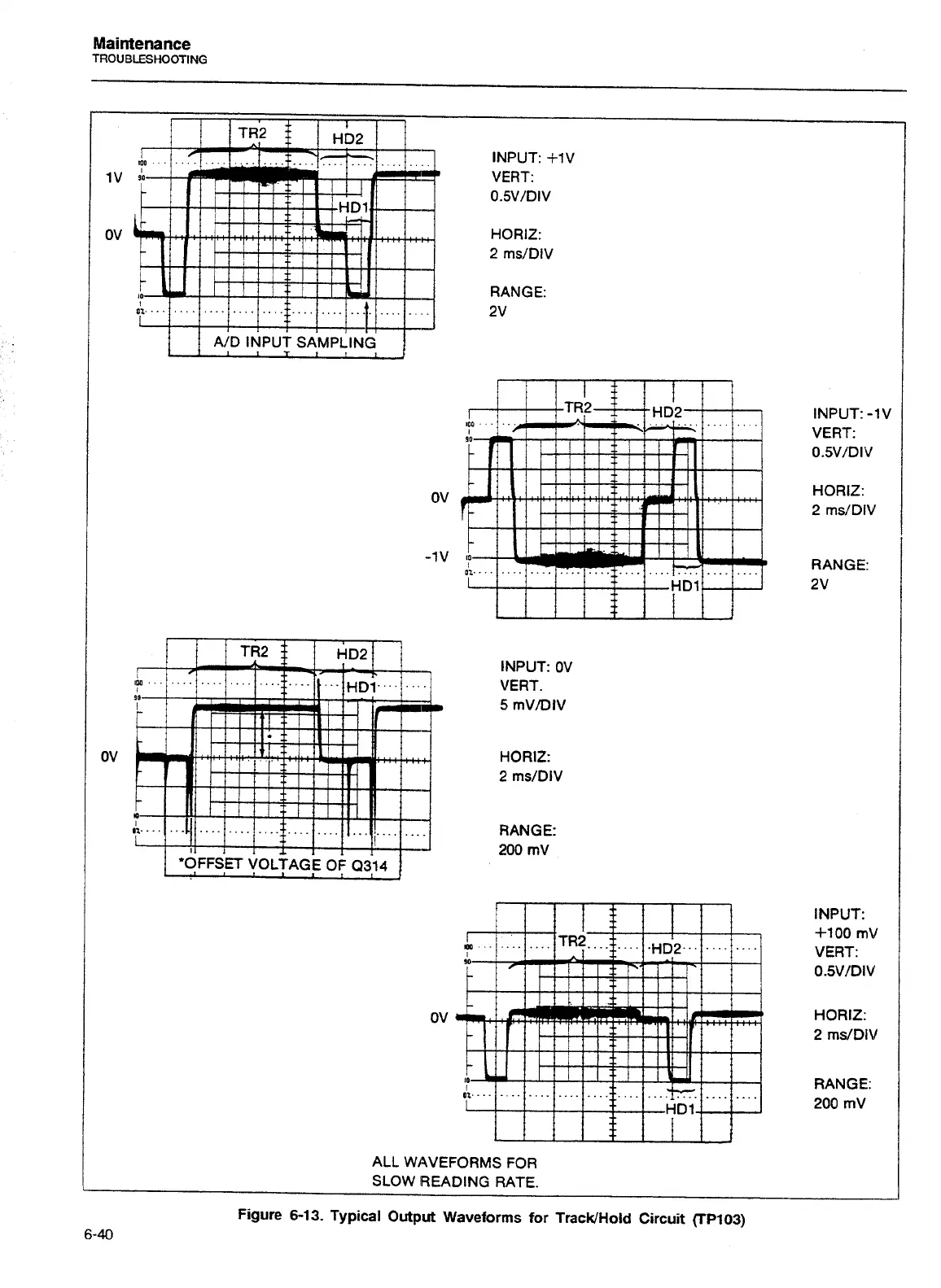

Figure
6-13.
Typical
Output
Waveforms for TracWHold Circuit
CTP1031
