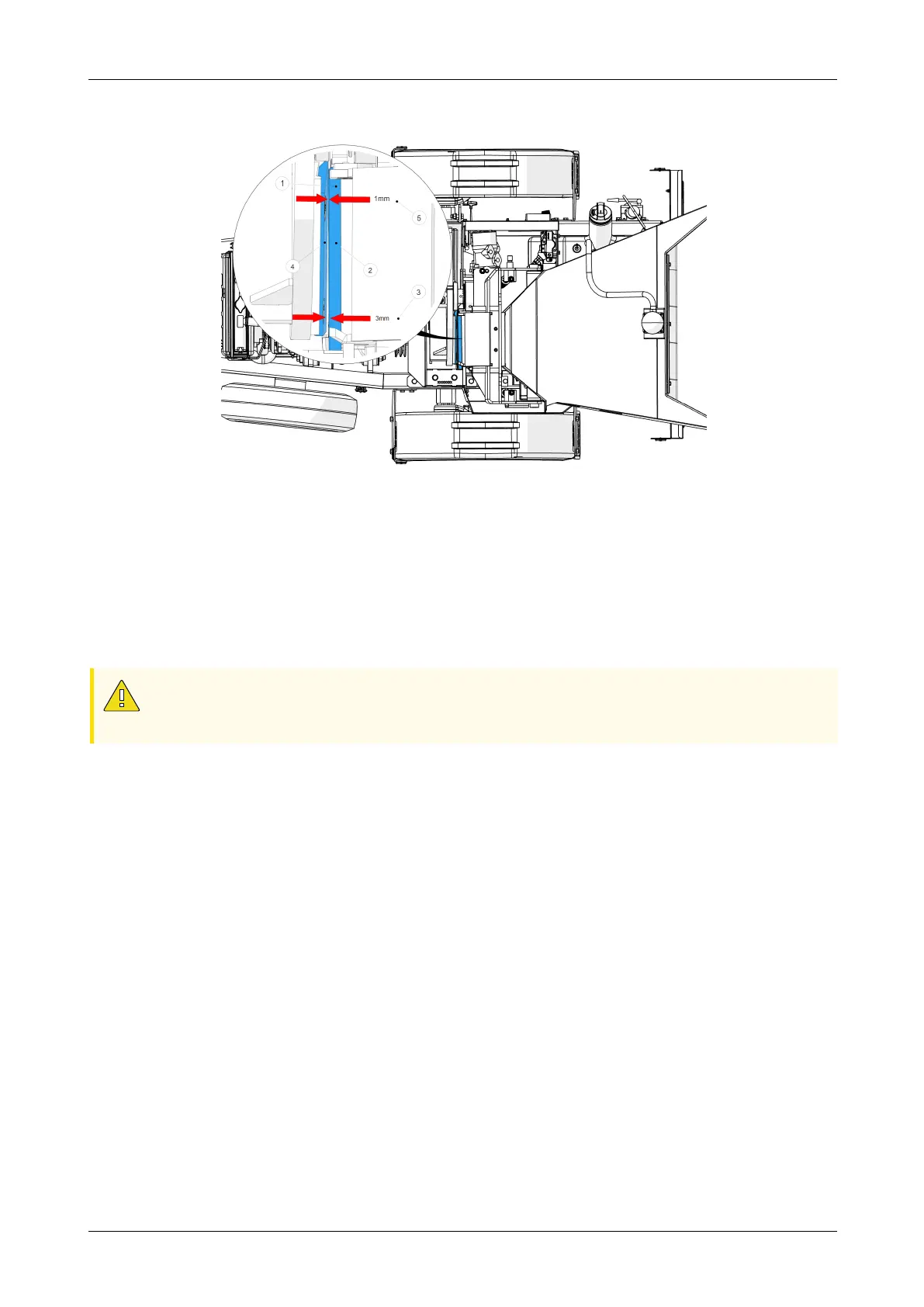

1 Side Anvil 4 Flywheel Blade
2 Anvil 5 Inside Blade Gap
3 Outside Blade Gap
Figure 63 - Blade gaps
When changing the blades, make sure each blade bolt set is replaced every time the
blades are changed. Make sure each blade bolt set is torqued up to 310Nm.
CAUTION
When fitting a blade bolt set, NO lubricant or anti-seize compound is to be
applied to the bolts. (310Nm is a dry torque).
Chapter 5: Maintenance
Redwood Global Ltd - ST6D42
Operator and Maintenance Manual
103 12-00-004 v2.1
