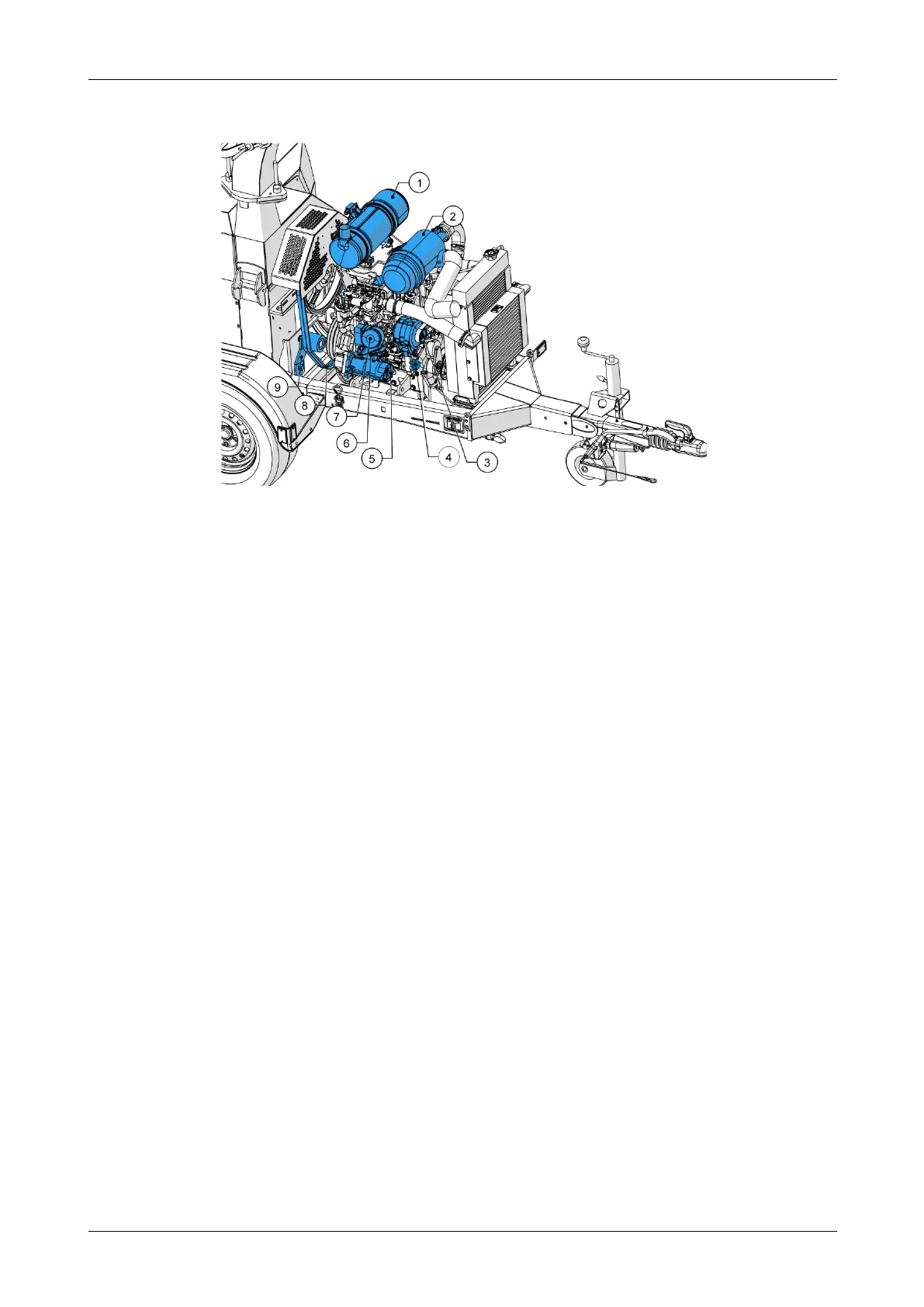

Below are the components of the engine located on the right side of the machine:
1 Diesel particulate filter (DPF) 6 Starter motor
2 Air filter assembly 7 Engine oil filter
3 Alternator 8 V belt
4 Enginer oil filler cap 9 V belt tensioner
5 Engine oil dipstick
Figure 4 - Right-hand side engine components
Chapter 1: Machine Overview
Redwood Global Ltd - ST6D42
Operator and Maintenance Manual
23 12-00-004 v2.1
