FORST ST6D42 - Figure 66 - Anvil Removed; Figure 67 - Anvil Seat

10. Using the slide hammer, extract the anvil (3, Figure 66) through the side of the
chamber.

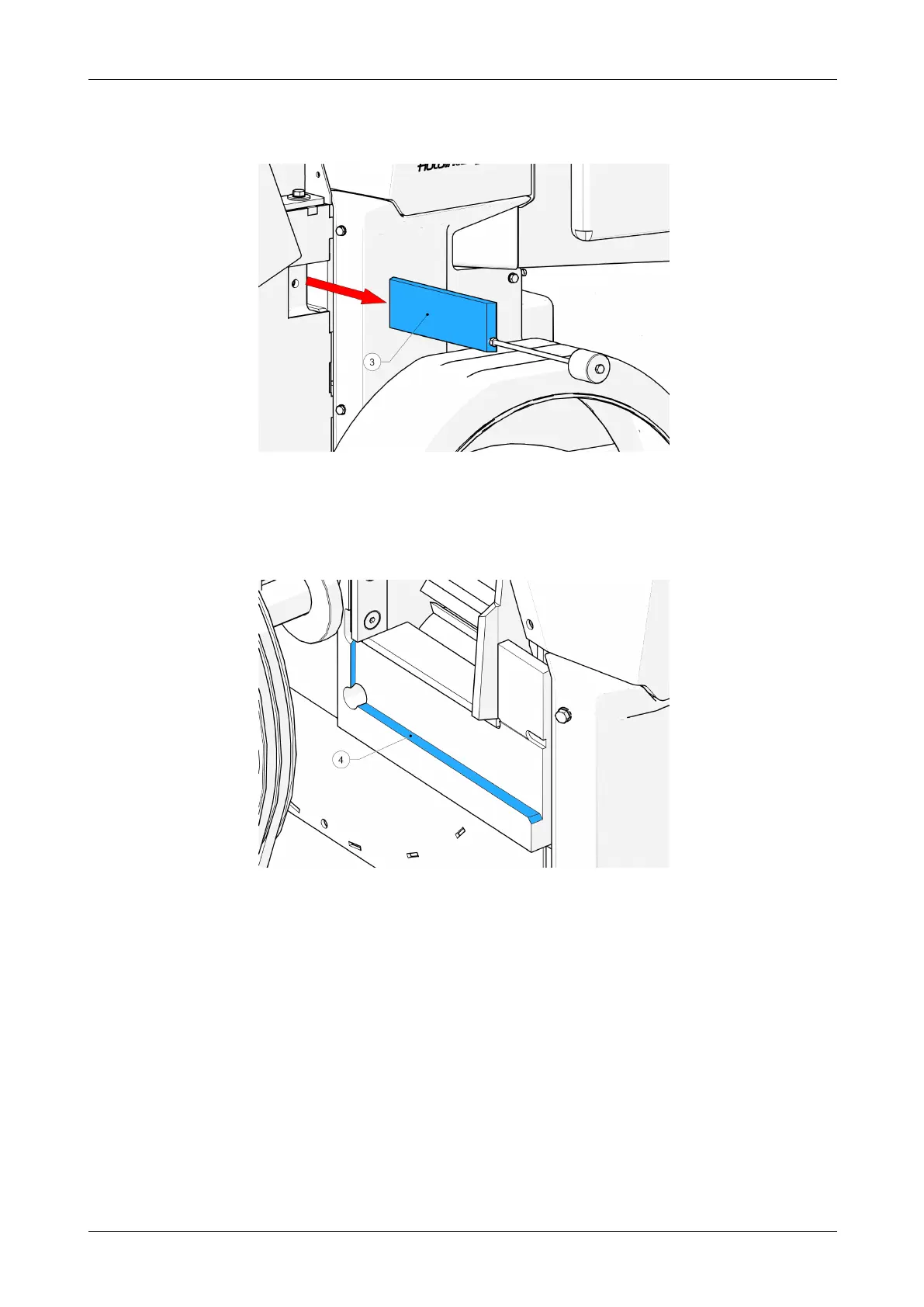

Figure 66 - Anvil removed
11. Check the anvil seats inside the chamber for damage or wear.
12. Make sure the anvil seats are free from dirt and debris before inserting anvil.
(4, Figure 67).
Figure 67 - Anvil seat
13. Make sure you:
a. Clean all surfaces of the anvil.
b. Inspect the anvil for any damage that would prevent further use.
c. If using the same anvil turn it 180° from its previous position.
14. Insert the anvil through the side of the chamber, making sure that the anvil stays
tight to the bed plate (5, Figure 68).
Chapter 5: Maintenance
Redwood Global Ltd - ST6D42
Operator and Maintenance Manual
105 12-00-004 v2.1
