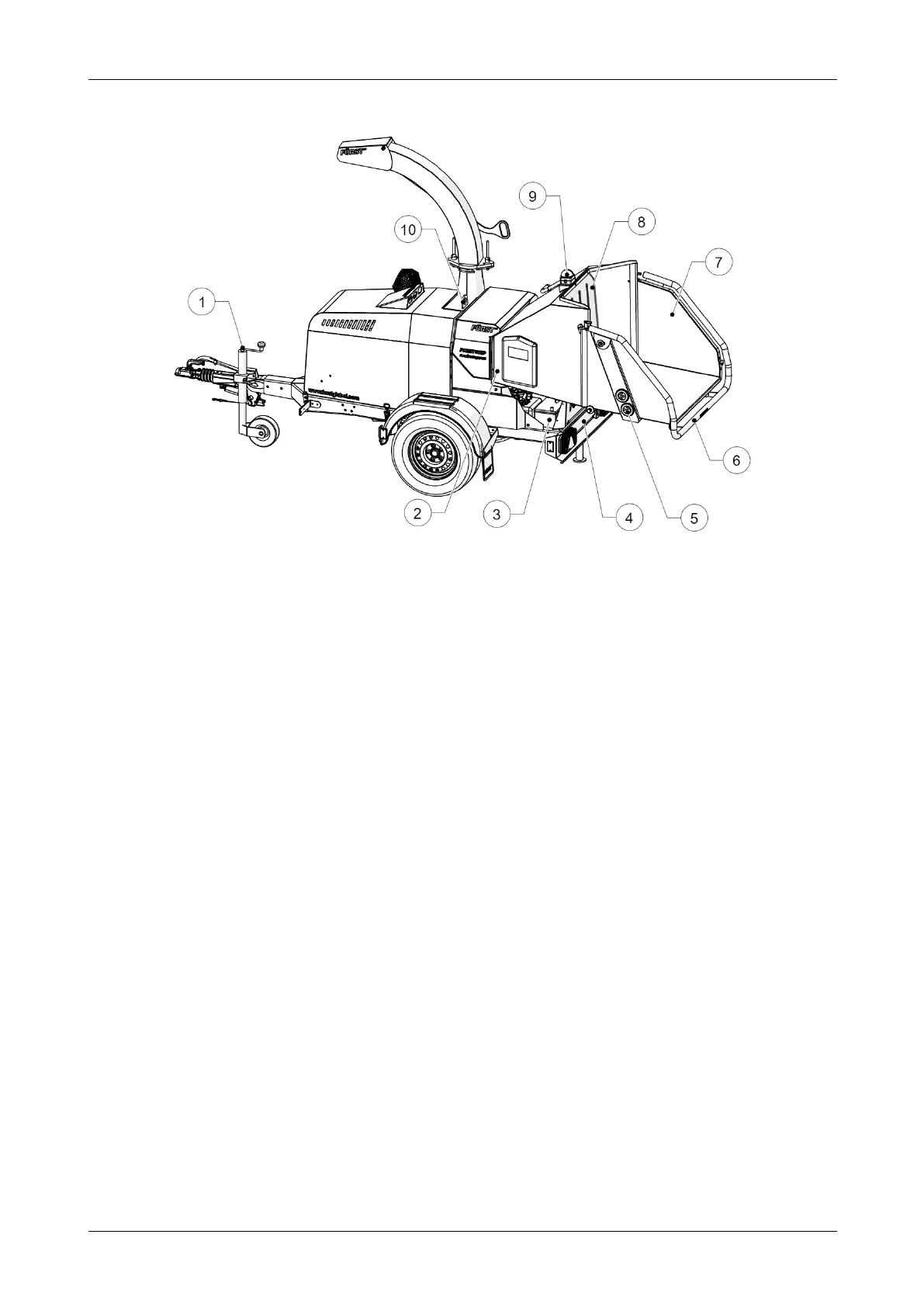

FORST ST6D42 - Figure 2 - Exterior Components, Left-Hand Side

1 Jockey wheel handle 6 Red stop bar
2 Hopper 7 Hopper tray
3 Battery 8 Safety curtains
4 Number plate 9 Emergency stop
5 Hopper tray buttons 10
Lift point
Figure 2 - Exterior components, left-hand side
Chapter 1: Machine Overview
Redwood Global Ltd - ST6D42
Operator and Maintenance Manual
21 12-00-004 v2.1
