5.8 OPENING THE CHIPPING CHAMBER COVER
To access the chipping chamber:
1. Stop the engine.
2. Remove the key from the ignition and keep in a safe place.
3. Open the bonnet.
4. Rotate the discharge chute to point over the side of the machine.

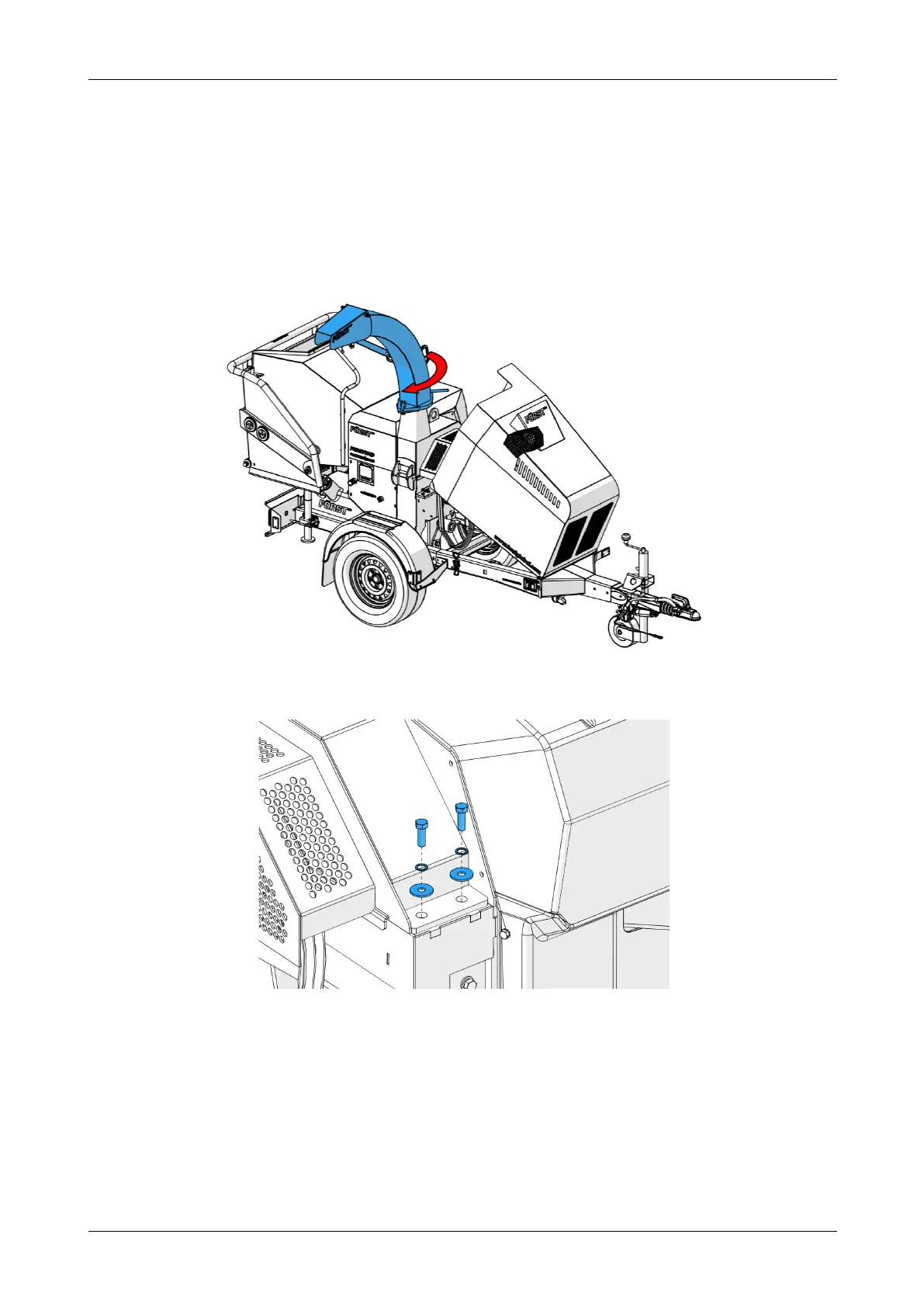

Figure 51 - Rotate the discharge chute
Figure 52 - Chipping chamber cover bolts
5. Using the discharge chute as a lever, carefully open the chipping chamber cover
and let it come to rest on the hinge stops.
Chapter 5: Maintenance
Redwood Global Ltd - ST6D42
Operator and Maintenance Manual
95 12-00-004 v2.1
