Redwood Global Ltd - ST6D42
Operator and Maintenance Manual
Chapter 3: Transportation and storage

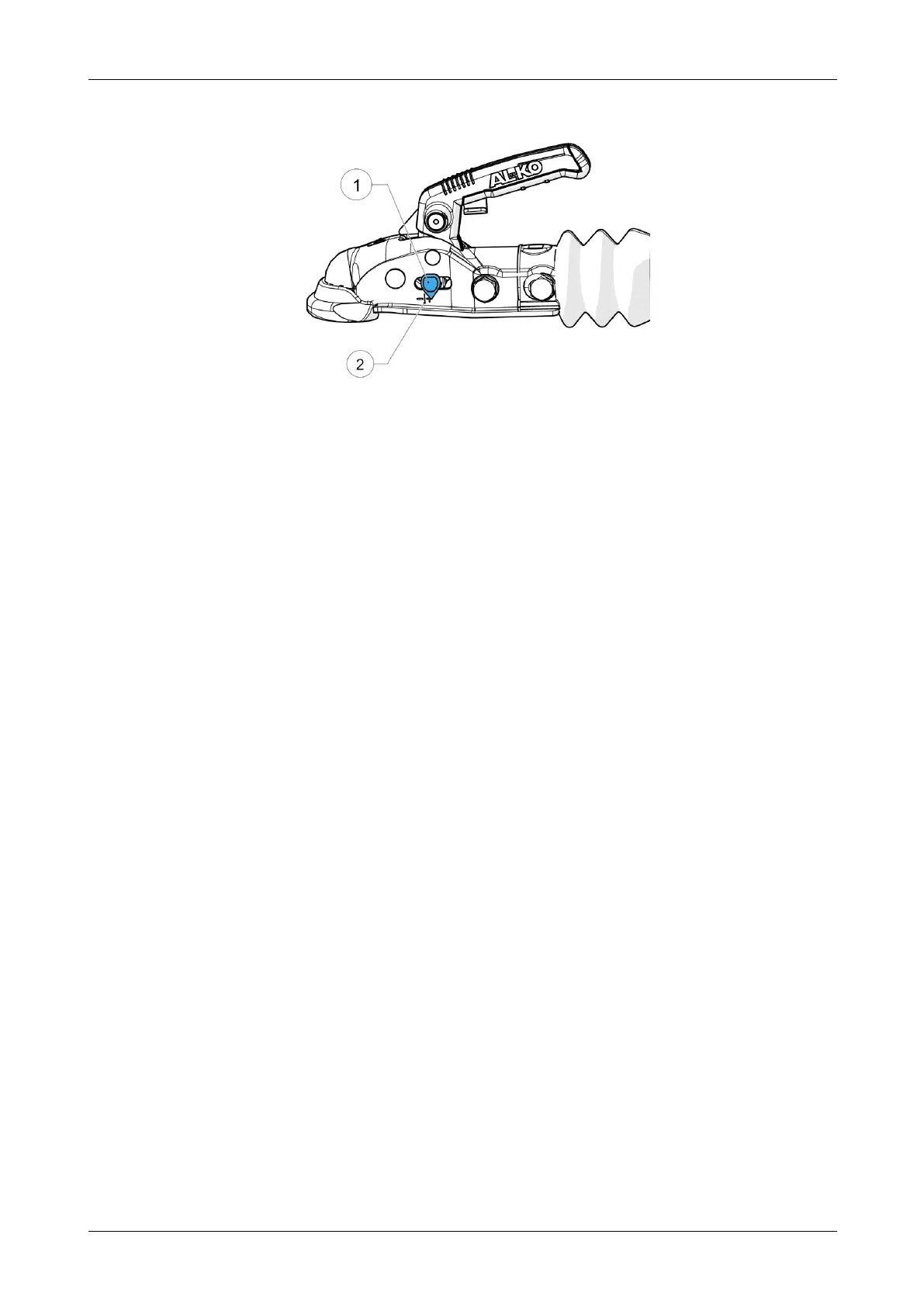

Figure 25 - Tow hitch wear indicator
11. Insert the barrel lock for security.
12. Connect the machine trailer extension plug into the vehicle trailer socket.
13. Check all machine lights and tow vehicle lights are working correctly.
14. The machine is now correctly connected to the tow vehicle.
15. Release the handbrake.
16. Remove the chocks.
12-00-004 v2.1 56
