1.10.2 NAVIGATION
This section describes how to navigate within the software.

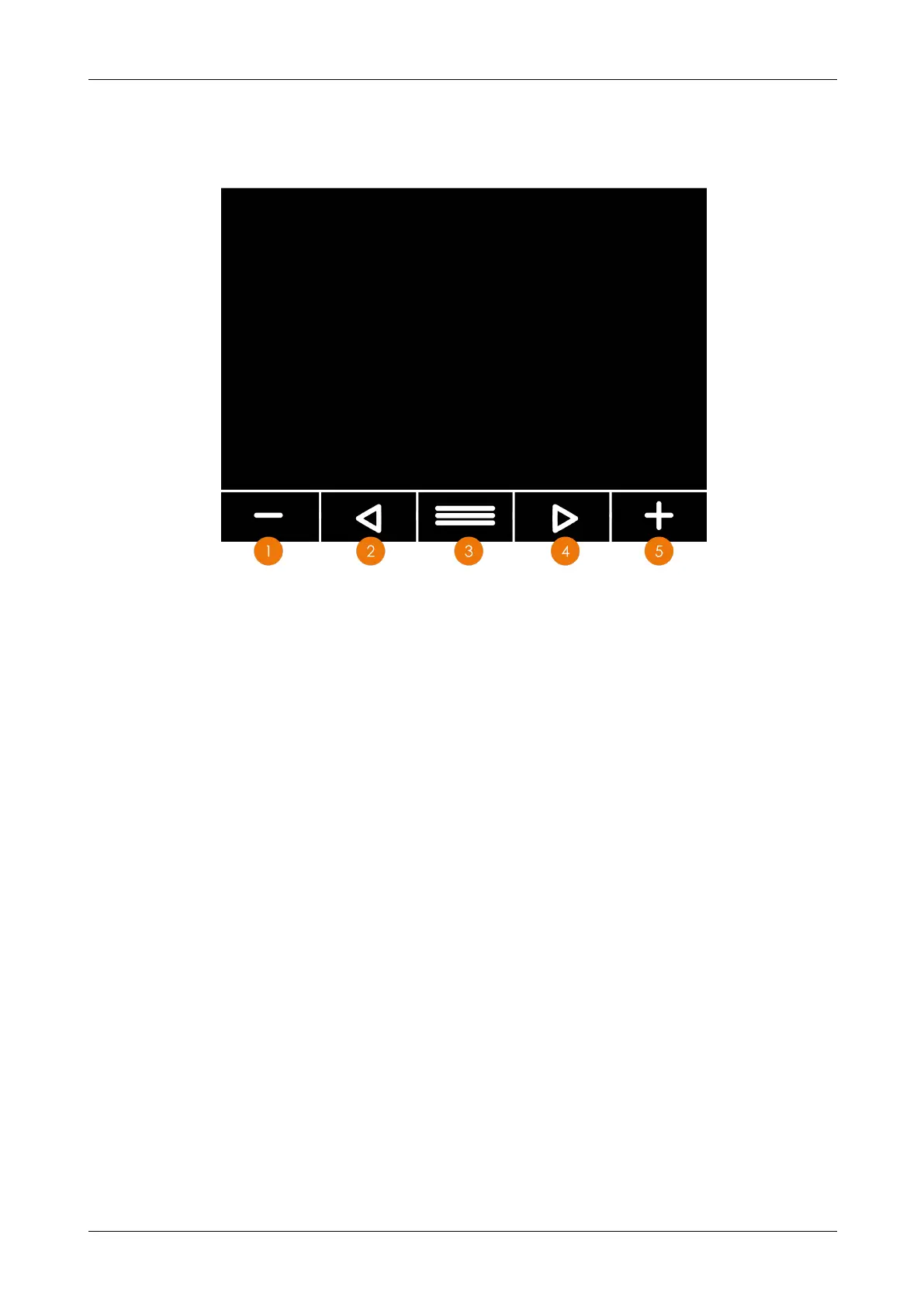

Figure 10 - Screen navigation
No. Description
1
Minus button - when an icon is highlighted, press this button to navigate left through the
icons options
2 Left arrow - use this button to navigate left through the icons on the screen
3 Menu - use this button to cycle through all screens on the control screen
4 Right arrow - use this button to navigate left through the icons on screen
5
Plus button - with an icon highlighted, press this button to cycle right through the icons
options
Chapter 1: Machine Overview
Redwood Global Ltd - ST6D42
Operator and Maintenance Manual
31 12-00-004 v2.1
