1.10.4 SENSORS AND DPF
The sensors and DPF page displays the sensor and DPF status. If a sensor is tripped the
corresponding icon will illuminate or extinguish.

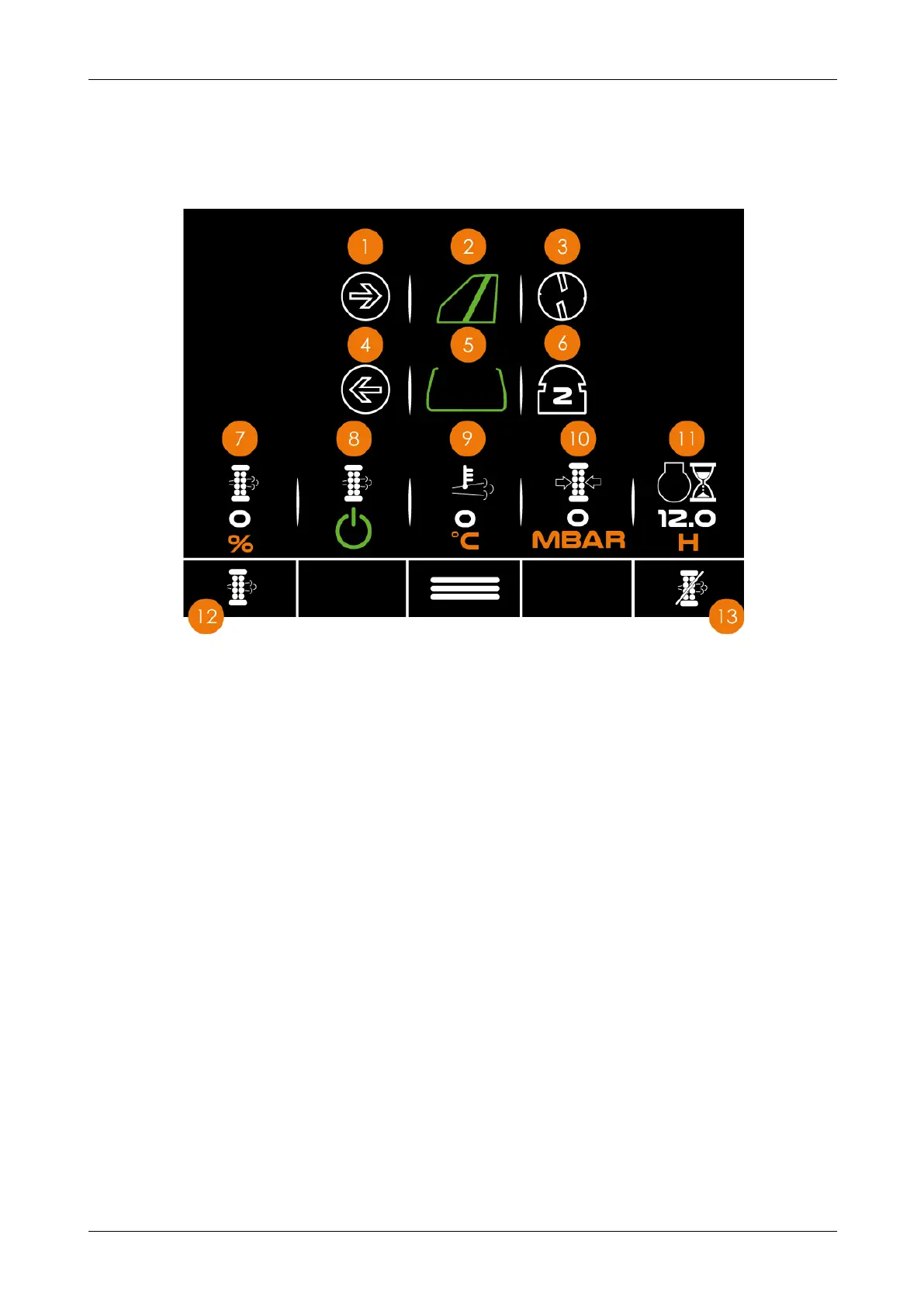

Figure 12 - Sensors and DPF screen
No. Description
1 Forward button sensor - while this is active the icon illuminates green
2 Tray sensor - if the tray is down the icons illuminates green
3 Flywheel sensor - every time a spoke passes the sensor, the icon flashes green
4 Reverse button sensor - while this is active, the button illuminates green
5 Stop bar sensor - if the stop bar is pressed the icon illuminates white
6
E-Stop sensor - The E-Stop illuminates green when pressed, red if there is a fault and the
number indicates which E-Stop has been pressed
7 Soot percentage - displays how much soot is in the system
8 Regen active - the power icon illuminates green when the system regeneration is active
9 Exhaust gas temperature- shows the temperature of the exhaust gas
10 DPF pressure differential - displays the pressure in the DPF system
11 Engine hours - displays the total amount of engine hours
12
Forced regeneration - press the button below this icon to force the machines DPF
system to regenerate
13
Inhibit regeneration - press the button below this icon to prevent the DPF system to
regenerate
